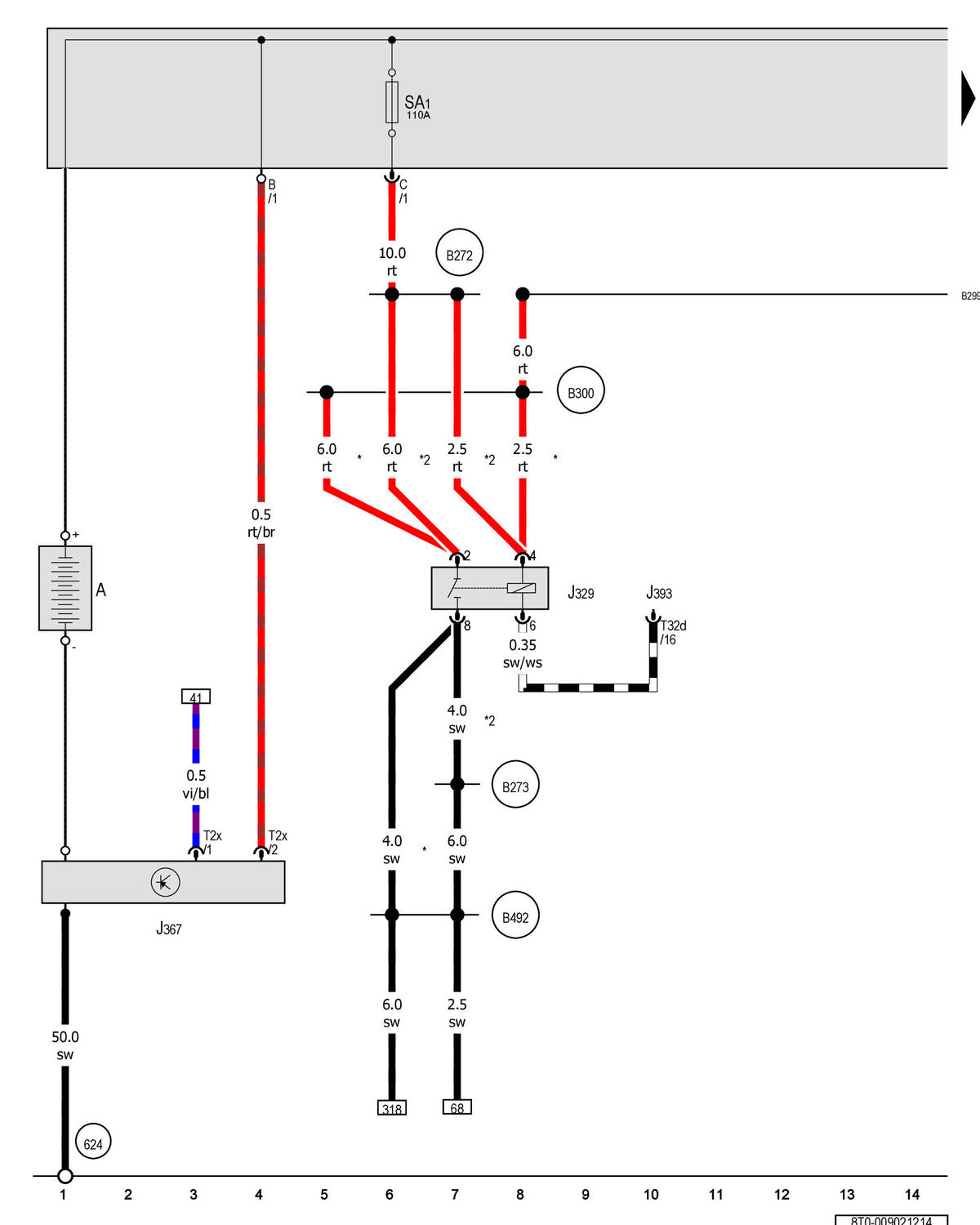

Battery, Terminal 15 Power Supply Relay, Battery Monitoring Control Module: Notes

GWW8T0-009021214

Courtesy of AUDI OF AMERICA, LLC
