Cover and cushion for seat pan, removing and installing (sport seat): Notes

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2008 Audi A4, 2007 Audi S4, and 2007 Audi RS 4. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Cover And Cushion For Seat Pan (Sport Seat) Remove/Install Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Cover

Removal:

Remove seat: Vehicles until 10.04 → Front seats (standard seat), removing and installing , vehicles from 11.04 → Front seats (standard seat), removing and installing .
Remove backrest: Vehicles until 10.04 → Front backrest (standard seat), removing and installing , vehicles from 11.04 → Front backrest (standard seat), removing and installing .
Unclip connector for heated seat - 2 - from bracket.
Pry out plastic strips - 3 - all around using a screwdriver.

For vehicles with LATCH "Lower Anchor and Tethers for Children" bracket and new cover - 1 -, cover must be cut in at LATCH "Lower Anchor and Tethers for Children" bracket.

2 - Seat heating connector

3 - Circular plastic strips

4 - Fastening strips

5 - Plastic clips

Replace damaged plastic clips

6 - Upholstery

7 - Seat heating

8 - Seat pan

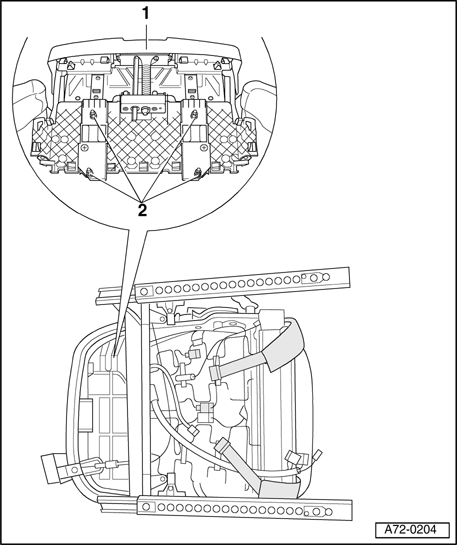

Fig 2: Identifying Seat Cushion Extension & Nuts

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Seat cushion extension

Removal:

Remove nuts - 2 - (4x).
Remove cover and upholstery.

Installing:

Installation is reverse of removal. Observe the following when doing so:

Damaged plastic clamps must be replaced.

2 - Nuts (4x)
