Headrest guides, removing and installing - vehicles from 11.04

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2008 Audi A4, 2007 Audi S4, and 2007 Audi RS 4. However, it is still accessible from the selected car via links, so may be relevant.

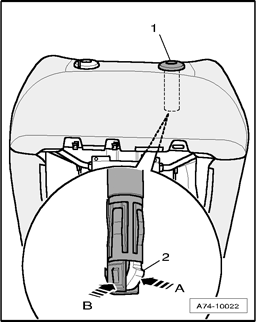

Fig 1: Pushing Release Button In And Pulling Headrest Upward As Far As Possible

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Removing

Push release button - 2 - in - direction of arrow A - and pull headrest - 1 - upward as far as possible - arrow B -, keep release button pushed while doing so.

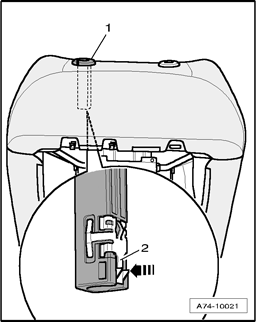

Fig 2: Pressing Release Button On Headrest Until Stop

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Press release button - 2 - on headrest - 1 - until stop - arrow -.
Slide headrest down completely on rods, release button on headrest must be kept pressed while doing so.
Remove headrest completely from headrest guides.

Fig 3: Headrest Guide Without Release Button:

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Headrest guide without release button:

Remove backrest panel: Standard seat → Backrest cover, removing and installing , power seat → Backrest cover, removing and installing .
Press catch - 2 - in - direction of arrow A - and press retaining claws in - direction of arrow B -.
Pull headrest guide - 1 - upward out of mount.

NOTE:

Headrest guide cannot be removed without destroying it.

Fig 4: Headrest Guide With Release Button:

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Headrest guide with release button:

Remove backrest panel: Standard seat → Backrest cover, removing and installing , power seat → Backrest cover, removing and installing .
Disengage catch - 2 - in - direction of arrow - and pull headrest guide - 1 - upward at the same time and out of mount.

Installing

Installation is reverse of removal, but note the following:

The headrest guide can only be inserted in one position.
Guide lug of headrest guide must engage in cut-out of mount for headrest guide.
