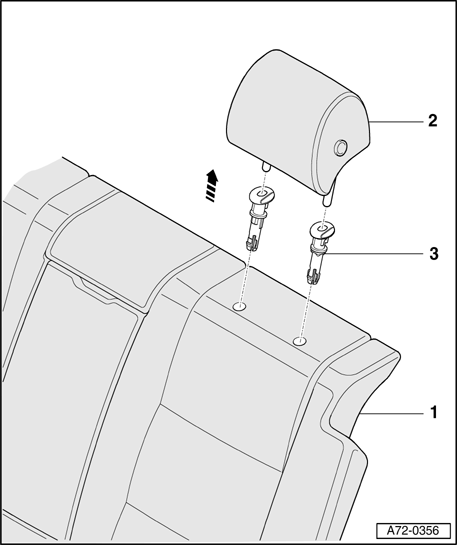

Headrests - component overview
WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2008 Audi A4, 2007 Audi S4, and 2007 Audi RS 4. However, it is still accessible from the selected car via links, so may be relevant.
1 - Rear seat backrest
2 - Outer headrests
- With insertion lock: Removing and installing → Headrest with insertion lock, removing and installing
- Without insertion lock: Removing and installing → Headrests without insertion lock, removing and installing
3 - Head rest guide
- With release button
- Must always be installed on left side
