1/3 backrest, removing and installing

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2008 Audi A4, 2007 Audi S4, and 2007 Audi RS 4. However, it is still accessible from the selected car via links, so may be relevant.

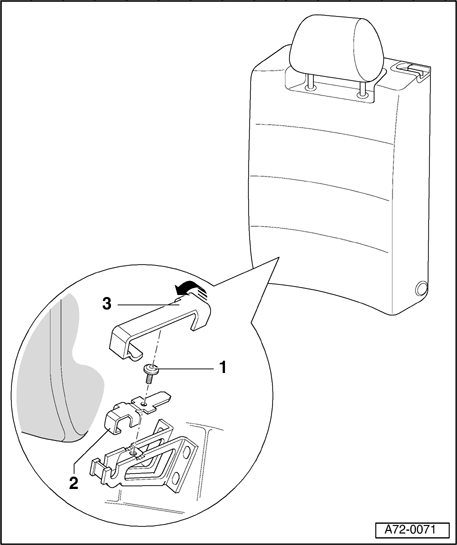

Fig 1: Identifying Screw, Clamp & Trim

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Removal:

Fold both backrests forward.
Unclip panels - 3 - from behind in - direction of arrow -, lever out through a hole from behind if necessary.
Unscrew bolt - 1 - and remove clamp - 2 -.

Tightening torques for bolt - 1 - : 10 Nm.

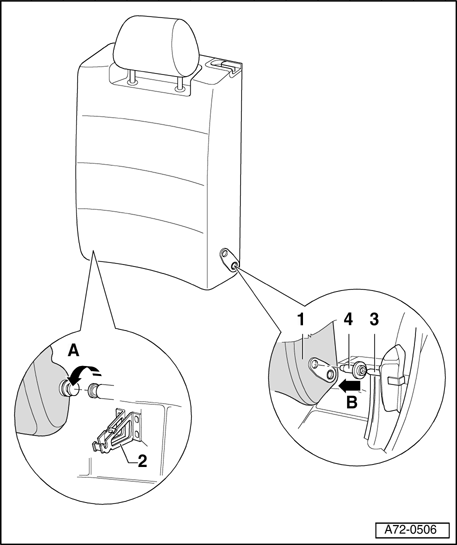

Fig 2: Identifying Backrest, Center Bracket, Fitting & Grommet

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Lift backrest - 1 - from center support - 2 - in direction of arrow - A - and detach from fitting - 3 - in - direction of arrow B -.

NOTE:

If the sleeve - 4 - of fitting is pulled out as well, attach it again.
Installing:

Installation is reverse of removal.

Fig 3: Identifying Screw, Clamp & Trim

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Screw

2 - Clamp

3 - Trim

Fig 4: Identifying Backrest, Center Bracket, Fitting & Grommet

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Backrest

2 - Center bracket

3 - Fitting

4 - Grommet
