Storage compartment, removing and installing

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2008 Audi A4, 2007 Audi S4, and 2007 Audi RS 4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools, testers and auxiliary items required

Fig 1: Special Tool - Engine And Transmission Holder VAS 6095

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Engine and transmission holder VAS 6095

Fig 2: Fixture For Seat Repair VAS 6136

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fixture for seat repair VAS 6136

Removing

CAUTION:

Observe safety precautions for work on airbags → Airbag safety precautions .
Before handling airbag units (e.g. disconnecting electrical connector), the person handling it must "electrostatically discharge". This can be done by touching door striker, for example.

Remove front seat → Seat, removing and installing .
Mount the fixture for seat repair VAS 6136 on the engine and transmission holder VAS 6095.
Attach seat to Fixture For Seat Repair VAS 6136.
Open storage compartment.

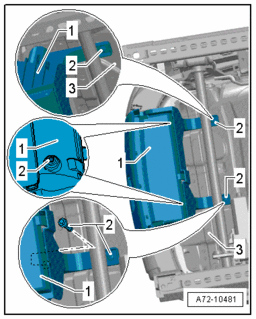

Fig 3: Storage Compartment Remove/Install Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove bolts - 2 - (Qty. 4).

NOTE:

For illustrative purposes, the storage compartment is shown closed in the illustration.

Remove entire storage compartment - 1 - from front seat - 3 -.

Installing

Installation is reverse of removal. Observe the following when doing so:

CAUTION:

Observe safety precautions for work on airbags → Airbag safety precautions .
Before handling airbag units (e.g. disconnecting electrical connector), the person handling it must "electrostatically discharge". This can be done by touching door striker, for example.

NOTE:

Ensure that electrical connections are pushed in as far as stop and engage with a click.

Switch on ignition.

CAUTION: Ignition must be on when connecting battery. If pyrotechnic components (e.g. airbag, belt tensioner) are not repaired correctly, they may deploy unintentionally after connecting battery. There must not be anyone inside the vehicle when connecting the battery.

Connect battery ground wire with ignition switched on →
- 27 BATTERY, STARTER, GENERATOR, CRUISE CONTROL
- 27 - BATTERY, STARTER, GENERATOR, CRUISE CONTROL for ELECTRICAL EQUIPMENT - GENERAL INFORMATION
.
If Airbag Malfunction Indicator Lamp (MIL) K75 indicates a fault after installation, DTC memory must be checked, deleted and checked again Vehicle Diagnosis, Testing and Information System VAS 5051B.

Tightening torques → Passenger side storage compartment, from 06.06, assembly overview
