Storage compartment individual parts, assembly overview

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2008 Audi A4, 2007 Audi S4, and 2007 Audi RS 4. However, it is still accessible from the selected car via links, so may be relevant.

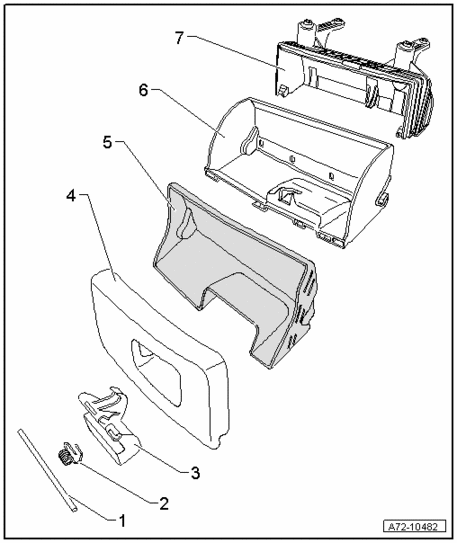

Fig 1: Storage Compartment Individual Parts, Assembly Overview

GW00020928

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Rod

For handle with locking mechanism

2 - Torsion spring

As a replacement part only with handle with locking mechanism and rod

3 - Handle with locking mechanism

As replacement part handle with locking mechanism, rod and torsion spring

4 - Trim

Clipped with inner part

5 - Insert

6 - Inner part

As replacement part only with outer part

7 - Outer part

As replacement part only with inner part
