Seat rail covers, removing and installing
WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2008 Audi A4, 2007 Audi S4, and 2007 Audi RS 4. However, it is still accessible from the selected car via links, so may be relevant.

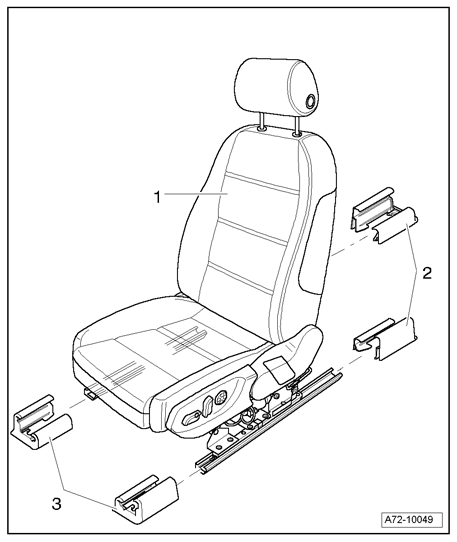

1 - Front seat
2 - Rear seat rail covers
- Qty. 2
- Removal
- Drive front seat - 1 - to center position.
- Remove seat → Front power seats with memory, removing and installing .
- Remove seat rail cover - 2 - or - 3 - from below on interior side.
- Pry out seat rail cover on the outside.
- Pull seat rail cover - 2 - or - 3 - out as straight as possible.
- Installing
Installation is reverse of removal.
3 - Front seat rail covers
- Qty. 2
