Seat Height Adjustment Motor V245 or V246, assembly overview

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2008 Audi A4, 2007 Audi S4, and 2007 Audi RS 4. However, it is still accessible from the selected car via links, so may be relevant.

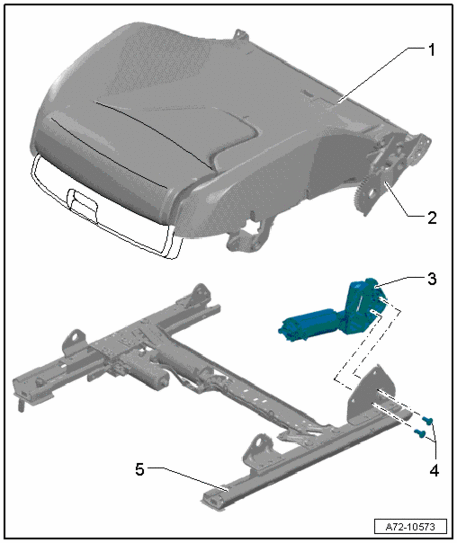

Fig 1: Seat Height Adjustment Motor V245 Or V246, Assembly Overview

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Seat pan upper frame

With cover and upholstery
Removing and installing → Seat pan, disassembling and assembling

2 - Toothed segment

Plastic toothed segment
Removing and installing → Seat height adjustment toothed segment, removing and installing
Clipped to fitting

3 - Drivers Seat Height Adjustment Motor V245 or Front Passenger s Seat Height Adjustment Motor V246

Removing and installing → Drivers Seat Height Adjustment Motor V245 or V246, removing and installing

4 - Screw, self-locking

31 Nm
Qty. 2
Replace
Threaded holes for screws must always be cleaned (for example, with thread cutter)

5 - Seat pan lower frame

Removing and installing → Seat pan, disassembling and assembling
