Backrest cover, removing and installing: Notes

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2008 Audi A4, 2007 Audi S4, and 2007 Audi RS 4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

In the illustration, removal and installation of backrest cover is shown on a front seat with the active head restraint system.
Removal and installation of backrest cover on a front seat without active head restraint system is the same.

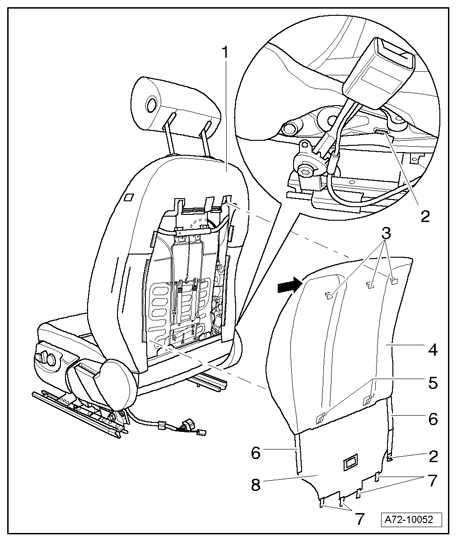

Fig 1: Backrest Cover Remove/Install Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Front seat

2 - Fastening strip

Always on tunnel side

3 - Clips

Qty. 3
Replace

4 - Backrest cover

Removal

Disengage footwell cover - 8 - on underside of seat at tabs - 7 - (Qty. 4) from spring mat.
Disengage retaining strip - 2 -.
Loosen retaining strips - 6 - (Qty. 2) from side panels Footwell cover retaining strip, loosening .
Press against backrest cover where indicated by arrow - 4 - to remove wire clips - 3 - (Qty. 3).

Disengage backrest cover - 4 - upward from brackets - 5 - (Qty. 2).

Installing

Installation is reverse of removal. When doing so, note the following:

Replace clips - 3 - (Qty. 3).
Slide footwell fastening strip into side trim bracket Footwell cover retaining strip, loosening .

5 - Bracket

Qty. 2

6 - Fastening strip

Qty. 2

7 - Tab

Qty. 4

8 - Footwell cover
