Pneumatic block - component assignment

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2008 Audi A4, 2007 Audi S4, and 2007 Audi RS 4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools, testers and auxiliary items required

Fig 1: Identifying Pry Lever 80-200

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Pry lever 80 - 200

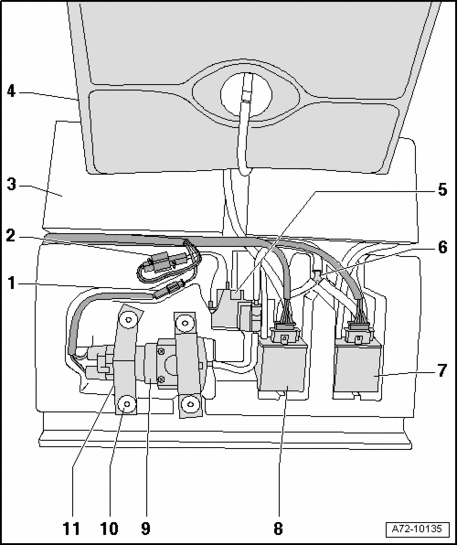

Fig 2: Pneumatic Block - Component Assignment

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Electrical connection

For Driver s Lumbar Support Pump V152
For Front Passenger s Lumbar Support Pump V153

2 - Electrical connection

For Driver s Lumbar Support Pressure Switch F224
For Front Passenger s Lumbar Support Pressure Switch F225

3 - Hard foam block

For pneumatic components
Secured to backrest at underside using double adhesive tape
Removing and installing → Backrest cover and padding, removing and installing

4 - Four-way lumbar support adjustment air cushion

Secured to hard foam block - 3 - using plastic plug
To remove, remove backrest cushion → Backrest cover and padding, removing and installing
Pry off plastic plug using pry lever 80-200

5 - Pressure switch for lumbar support adjustment

Driver s Lumbar Support Pressure Switch F224
Front Passenger s Lumbar Support Pressure Switch F225
To remove, remove backrest cushion → Backrest cover and padding, removing and installing

6 - Y-piece

For pneumatic hoses to valve blocks

7 - Lumbar support valve block

Driver s Lumbar Support Valve Block N209
Front Passenger s Lumbar Support Valve Block N210
To remove, remove backrest cushion → Backrest cover and padding, removing and installing

8 - Backrest inflation adjustment valve block

Driver s Lumbar Support Valve Block V378
Front Passengers Seat/Backrest Inflation Adjustment Valve Block V379
To remove, remove backrest cushion → Backrest cover and padding, removing and installing

9 - Lumbar support pump

Driver s Lumbar Support Pump V152
Front Passenger s Lumbar Support Pump V153
To remove, remove backrest cushion → Backrest cover and padding, removing and installing
Secured using rubber strap - 11 - and plastic plugs - 10 -

10 - Plastic plug

Pry off using pry lever 80-200

11 - Rubber strap
