Special Tools
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2017 Audi A5 Quattro, 2016 Audi A5 Quattro, 2015 Audi A5 Quattro, 2014 Audi A5 Quattro, and 2014 Audi A5. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools And Workshop Equipment Required
- Polydrive Bit Drive Socket :T10070
- Elbow Assembly Tool :T10118
- Dial Gauge Adapter :T10170A
- Counterhold - Multiple Use :T10172A
- Seal Installer - Selector Shaft Oil Seal :T10174
- Assembly Tool :T10352A
- Seal Installer - Crankshaft :T10354
- Press Piece - Gearbox :T10375
- Vibration Damper Assembly Tool - Knurled Nut :T10531/4
from the Vibration Damper Assembly Tool :T10531
- Locking Pin (3 pc.) :T40011
- Valve Cotter Tool Kit - Adapter :T40012
- Camshaft Spacer :T40191

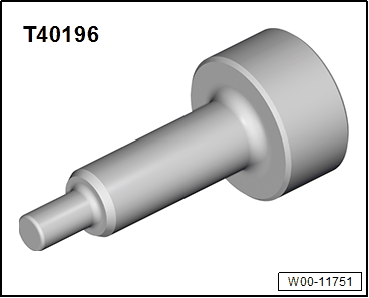

- Camshaft Pins :T40196
- Chain Tensioner Lever :T40243
- Wrench - 21mm :T40263
- Tensioner Locking Tool :T40267
- Seal Installer - Crankshaft :T40274
- Adapter :T40266
- Camshaft Locks :T40271
- Adapter :T40314
- Compression Tester Kit :VAG1763
- Valve Keeper Tool Kit :VAS5161A
- Valve Cotter Tool Kit - Guide Plate 19C :VAS5161/19C
- Dial Gauge - 0-10mm :VAS6079
- Engine and Transmission Holder :VAS6095A
- Engine Bung Set :VAS6122
- Dial Gauge Set :VAS6341
- Hose Clip Pliers :VAS6362
- Cylinder Head Tensioning Device :VAS6419
- Dial Indicator Holder :VW387
- Spark Plug Removal Tool :3122B
- Puller - Valve Seal :3364
- Seal Installer - Valve Stem :3365
or (depending on the version/manufacturer of the valve stem seal)
- Fitting Tool :T40376/1
