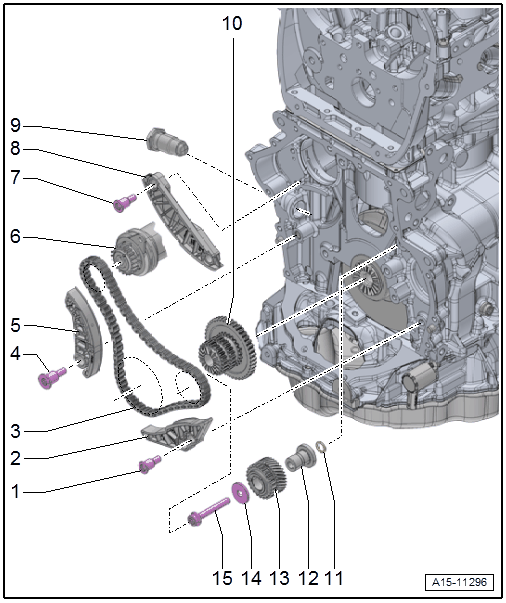

Overview - Balance Shaft Drive Chain: Notes
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2017 Audi A5 Quattro, 2016 Audi A5 Quattro, 2015 Audi A5 Quattro, 2014 Audi A5 Quattro, and 2014 Audi A5. However, it is still accessible from the selected car via links, so may be relevant.
- Guide Pin
- 20 Nm
- Guide Rail
- For the timing chain
- Balance Shaft Drive Chain
- Removing and installing. Refer to BALANCE SHAFT DRIVE CHAIN, REMOVING AND INSTALLING
- Guide Pin
- 20 Nm
- Tensioning Rail
- For the drive chain for the balance shafts
- Balance Shaft
- Must be replaced after removing
- Exhaust side
- Lubricate the bearing with engine oil
- Replacing. Refer to BALANCE SHAFT, REMOVING AND INSTALLING, EXHAUST SIDE .
- Guide Pin
- 20 Nm
- Guide Rail
- For the timing chain
- Chain Tensioner
- 85 Nm
- Coat the seal with sealant
- Three Stage Chain Sprocket
- Installation position. Refer to Figure.
- O-ring
- Lubricate with engine oil
- Mounting Pin
- Lubricate with engine oil
- Installation position. Refer to Fig 2.
- Intermediate Sprocket
- The intermediate sprocket must be replaced if the bolt -item ) OVERVIEW - BALANCE SHAFT DRIVE CHAIN is loosened.
- Washer
- Bolt
- Tightening sequence. Refer to TIGHTENING SPECIFICATIONS / Fig 3.
- Always replace after removing
- The intermediate sprocket -item ) OVERVIEW - BALANCE SHAFT DRIVE CHAIN must be replaced if the bolt is loosened.
- Replace and lubricate the O-ring -1- after removal.
- The alignment pin -arrow- for the bearing pins must engage in the hole in the cylinder block.
- Lubricate the bearing pins
CAUTION:
There Is a Risk of Destroying the Engine When the Intermediate Sprocket Is Missing Backlash.
The new intermediate sprocket has an anti-friction coating that wears off after a short period of use, which automatically adjusts the backlash.
- Never reuse the intermediate sprocket.
