Part II. Refer to OVERVIEW - TURBOCHARGER .

Part III. Refer to OVERVIEW - TURBOCHARGER .

Part IV - 1.8L engine only . Refer to OVERVIEW - TURBOCHARGER .

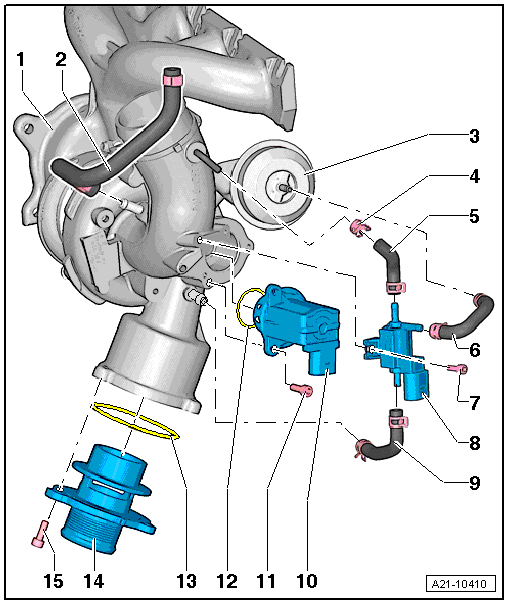

Fig 1: Exploded View Of Turbocharger With Components (Vacuum Lines)

Courtesy of AUDI OF AMERICA, LLC

Turbocharger
- Can only be replaced with exhaust manifold and vacuum diaphragm.
- Removing and installing. Refer to TURBOCHARGER, REMOVING AND INSTALLING
Hose
Turbocharger Vacuum Diaphragm
- Can be replaced only with the turbocharger
Hose Clamp
Hose
Hose
Bolt
- 3 Nm
Wastegate Bypass Regulator Valve -N75-
Hose
Turbocharger Recirculation Valve -N249-
- Note the installation position. Refer to appropriate service information. .
Bolt
- 7 Nm
O-ring
- Always replace after removing
O-ring
- Always replace after removing
Connection
Bolt
- 9 Nm

Courtesy of AUDI OF AMERICA, LLC

-- Note the installation location -arrows-.
