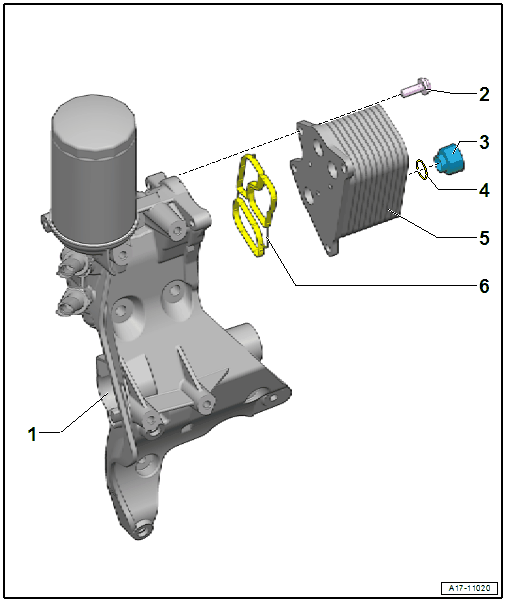

Overview - Engine Oil Cooler
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2017 Audi A5 Quattro, 2016 Audi A5 Quattro, 2015 Audi A5 Quattro, 2014 Audi A5 Quattro, and 2014 Audi A5. However, it is still accessible from the selected car via links, so may be relevant.
- Sub-Assembly Bracket
- Removing and installing. Refer to SUB-ASSEMBLY BRACKET, REMOVING AND INSTALLING
- Bolt
- 15 Nm
- Connection
- Seal
- Always replace after removing
- Coat with coolant
- Engine Oil Cooler
- See note. Refer to OVERVIEW - OIL PAN/OIL PUMP .
- Removing and installing. Refer to ENGINE OIL COOLER, REMOVING AND INSTALLING
- Seal
- Always replace after removing
