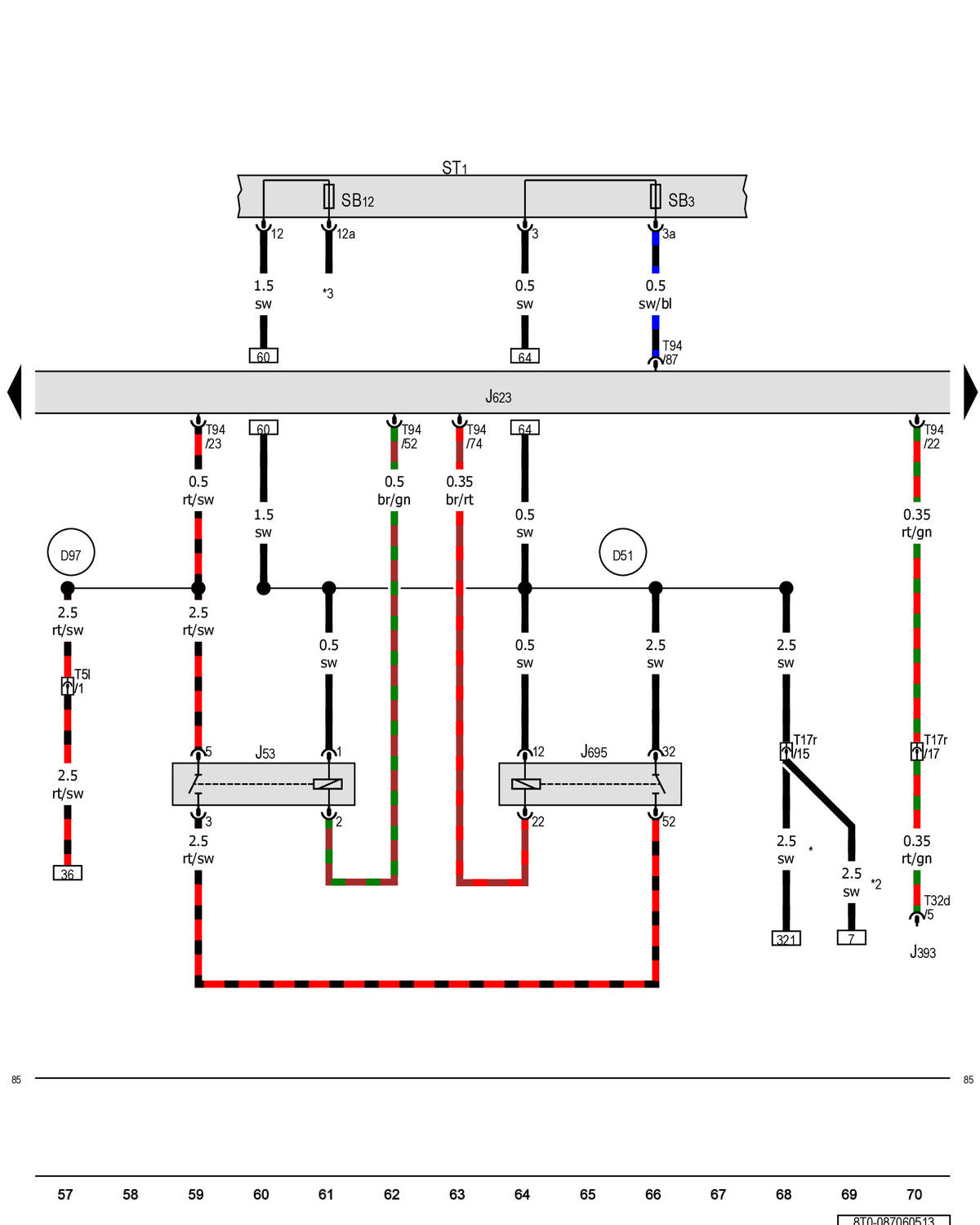

Starter Relay, Engine Control Module, Relay 2 For Starter
J53
Starter relay Type:BT, Slpdok:, Aim:BTJ53
J393
Comfort system central control module Type:BT, Slpdok:, Aim:BTJ393
J623
Engine control module Type:BT, Slpdok:, Aim:BTJ623 Type:BT, Slpdok:, Aim:BTJ623
J695
Relay 2 for starter Type:BT, Slpdok:, Aim:BTJ695
ST1
Fuse panel 1
SB3
Fuse 3 (on fuse panel B) Type:BT, Slpdok:, Aim:BTSB-
SB12
Fuse 12 (on fuse panel B) Type:BT, Slpdok:, Aim:BTSB-
T5l
5-pin connector, in the engine compartment
T17r
17-pin connector, white Type:BT, Slpdok:, Aim:BTT17r
T32d
32-pin connector Type:BT, Slpdok:, Aim:BTT32d
T94
94-pin connector Type:BT, Slpdok:, Aim:BTT94
85 - Ground connection 1 (in engine compartment wiring harness)
D51 - Positive connection 1 (15) (in engine compartment wiring harness)
D97 - Connection 50 (in right engine compartment wiring harness)
* From May 2009
*2 Through April 2009
*3 Refer To Applicable Wiring Diagram For Automatic Transmission
