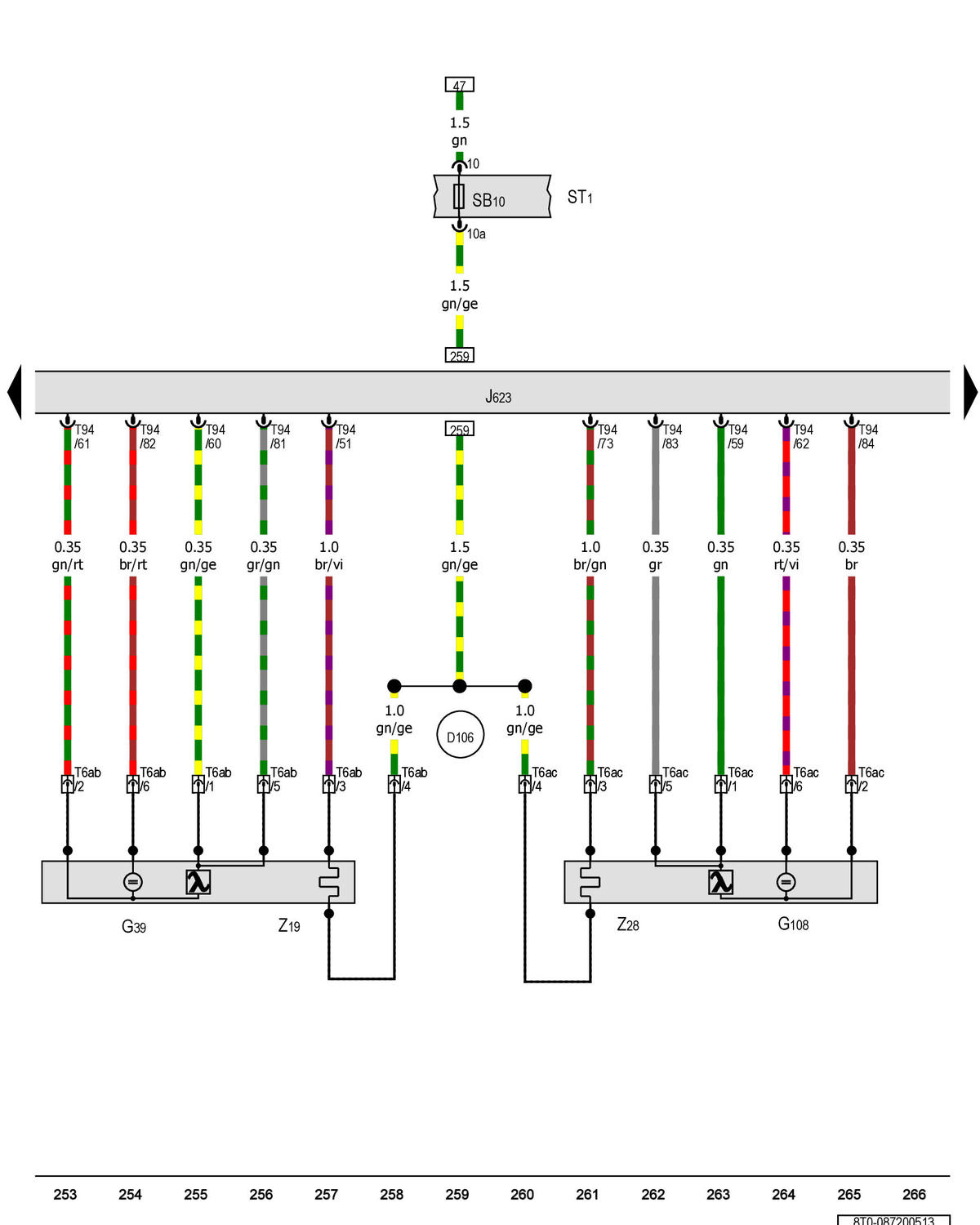

Heated Oxygen Sensor, Heated Oxygen Sensor 2, Engine Control Module

Courtesy of AUDI OF AMERICA, LLC

G39

Heated oxygen sensor Type:BT, Slpdok:, Aim:BTG39

G108

Heated oxygen sensor 2 Type:BT, Slpdok:, Aim:BTG108

J623

Engine control module Type:BT, Slpdok:, Aim:BTJ623 Type:BT, Slpdok:, Aim:BTJ623

ST1

Fuse panel 1

SB10

Fuse 10 (on fuse panel B) Type:BT, Slpdok:, Aim:BTSB-

T6ab

6-pin connector, black

T6ac

6-pin connector, black

T94

94-pin connector Type:BT, Slpdok:, Aim:BTT94

Z19

Oxygen sensor heater

Z28

Oxygen sensor 2 heater

D106  - Connection 4 (in engine compartment wiring harness)
