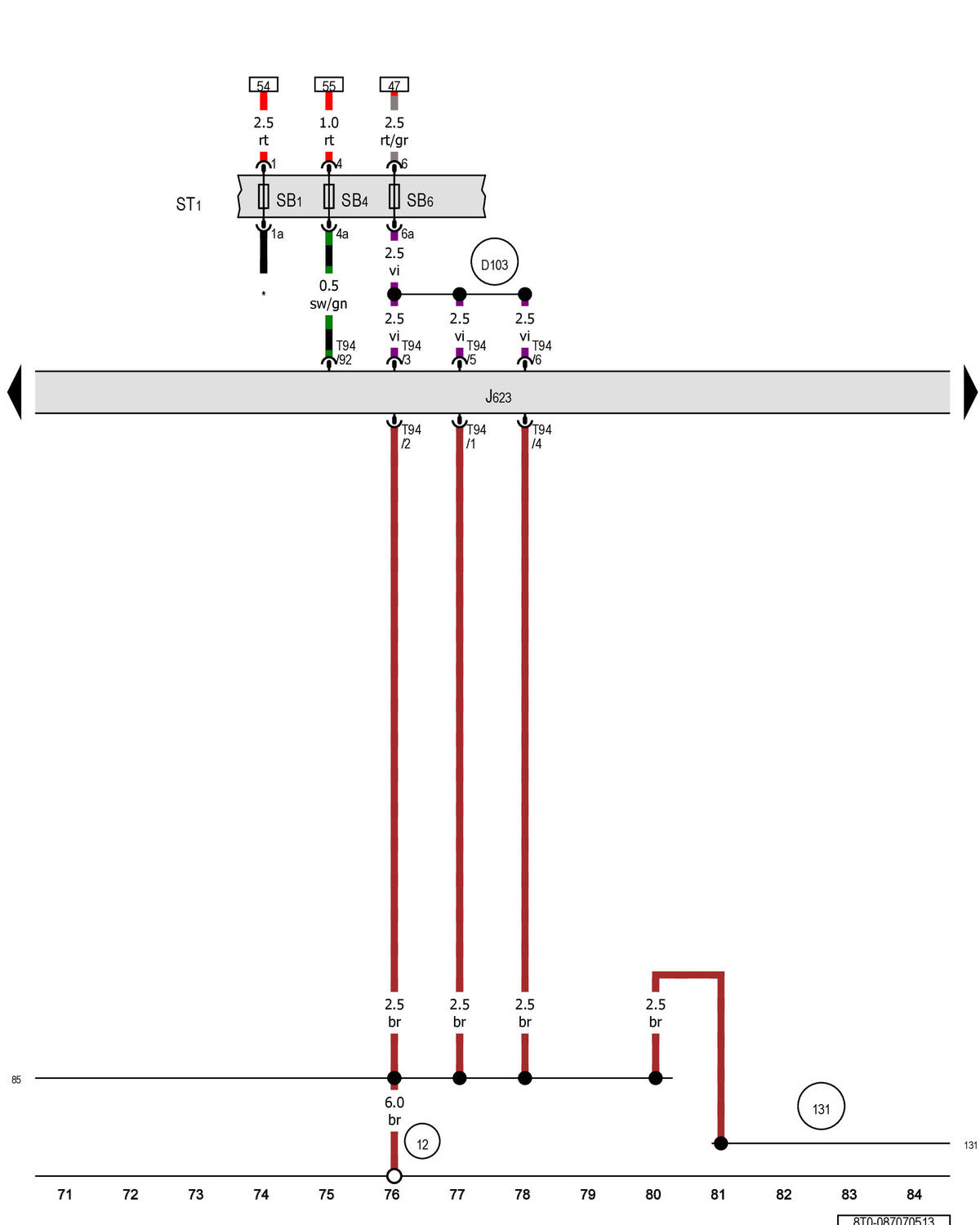

Engine Control Module
J623
Engine control module Type:BT, Slpdok:, Aim:BTJ623 Type:BT, Slpdok:, Aim:BTJ623
ST1
Fuse panel 1
SB1
Fuse 1 (on fuse panel B) Type:BT, Slpdok:, Aim:BTSB-
SB4
Fuse 4 (on fuse panel B) Type:BT, Slpdok:, Aim:BTSB-
SB6
Fuse 6 (on fuse panel B) Type:BT, Slpdok:, Aim:BTSB-
T94
94-pin connector Type:BT, Slpdok:, Aim:BTT94
12 - Ground connection in engine compartment, left Type:VB, Slpdok:, Aim:VB12
85 - Ground connection 1 (in engine compartment wiring harness)
131 - Ground connection 2 (in engine compartment wiring harness)
D103 - Connection 3 (in engine compartment wiring harness)
* Refer To Applicable Wiring Diagram For Automatic Transmission
