Home >> Audi >> 2012 >> S5 4.2, Automatic Trans >> Repair and Diagnosis >> Electrical >> Wiring Diagrams >> Wiring Diagram [CAUA] (1 Of 2) (Coupe) >> Wiring Diagram >> Coolant Circulation Pump Relay, Engine Control Module, Camshaft Adjustment Valve 1, Camshaft Adjustment Valve 2, Exhaust Camshaft Adjustment Valve 1, Exhaust Camshaft Adjustment Valve 2, After-Run Coolant Pump >> Notes

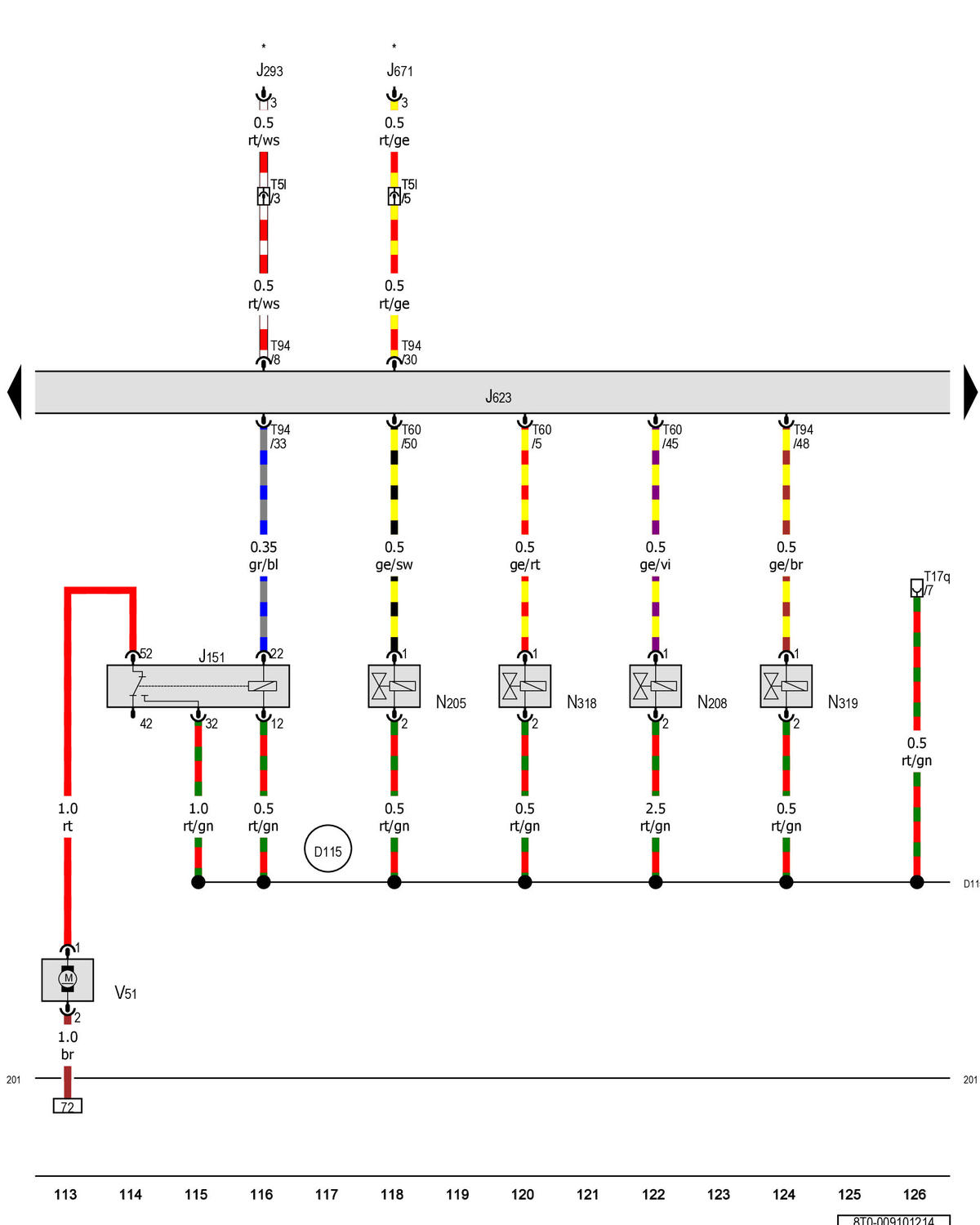

Coolant Circulation Pump Relay, Engine Control Module, Camshaft Adjustment Valve 1, Camshaft Adjustment Valve 2, Exhaust Camshaft Adjustment Valve 1, Exhaust Camshaft Adjustment Valve 2, After-Run Coolant Pump: Notes

GWW8T0-009101214Courtesy of AUDI OF AMERICA, LLC
