Overview - Underbody Panels

Front underbody panels. Refer to OVERVIEW - UNDERBODY PANELS => Front Underbody Panels

Rear underbody panels. Refer to OVERVIEW - UNDERBODY PANELS => Rear Underbody Panels

Front Underbody Panels

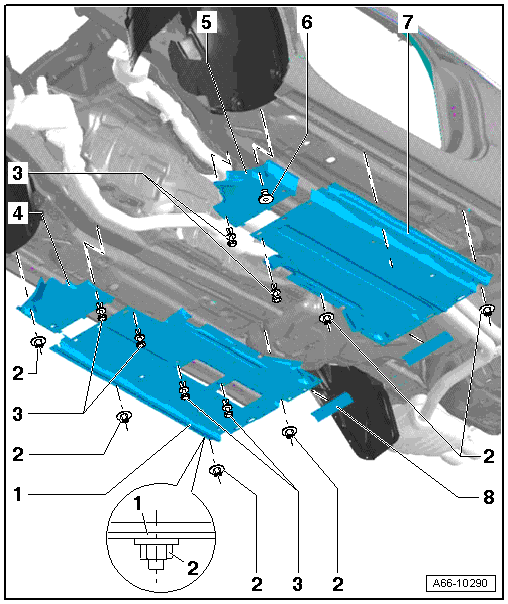

Fig 1: Aerodynamic Trim Panels Overview

1. Right Aerodynamic Trim Panel
2. Nut
   • 2 Nm
   • Quantity: 7 on left
3. Expanding Clip
4. Right Front Aerodynamic Trim Panel
5. Left Front Aerodynamic Trim Panel
6. Nut
   • 2 Nm
   • Quantity: 8 on the right
7. Left Aerodynamic Trim Panel
8. Heel Plate Spoiler

Rear Underbody Panels

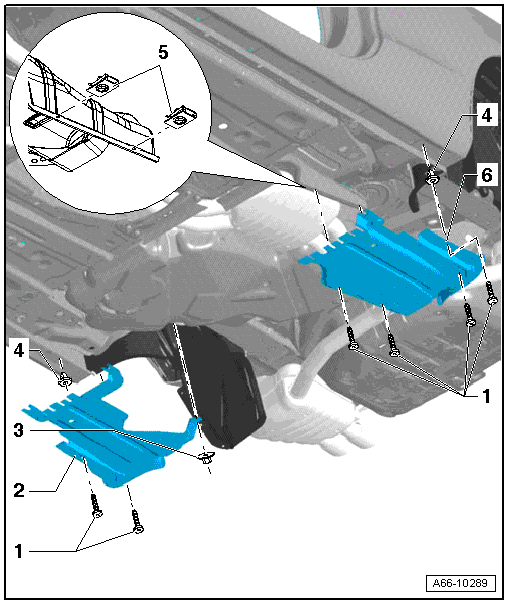

Fig 2: Aerodynamic Trim Panels Overview

1. Bolt
   • 3.5 Nm
2. Right Wheel Spoiler
3. Nut
   • 2 Nm
4. Clip
5. Spring Nut
6. Left Wheel Spoiler
   • Slide wheel spoiler in under wheel housing liner as shown

     -- Loosen wheel housing liner in wheel spoiler area and move to side.

     -- Remove bolt -2- and nut -3- and remove wheel spoiler.

7. Rear Wheel Housing Liner
