Wiring Diagram [CCBA, CGXC, CLUA] (Cabriolet)
>>
Wiring Diagram(S)
>>

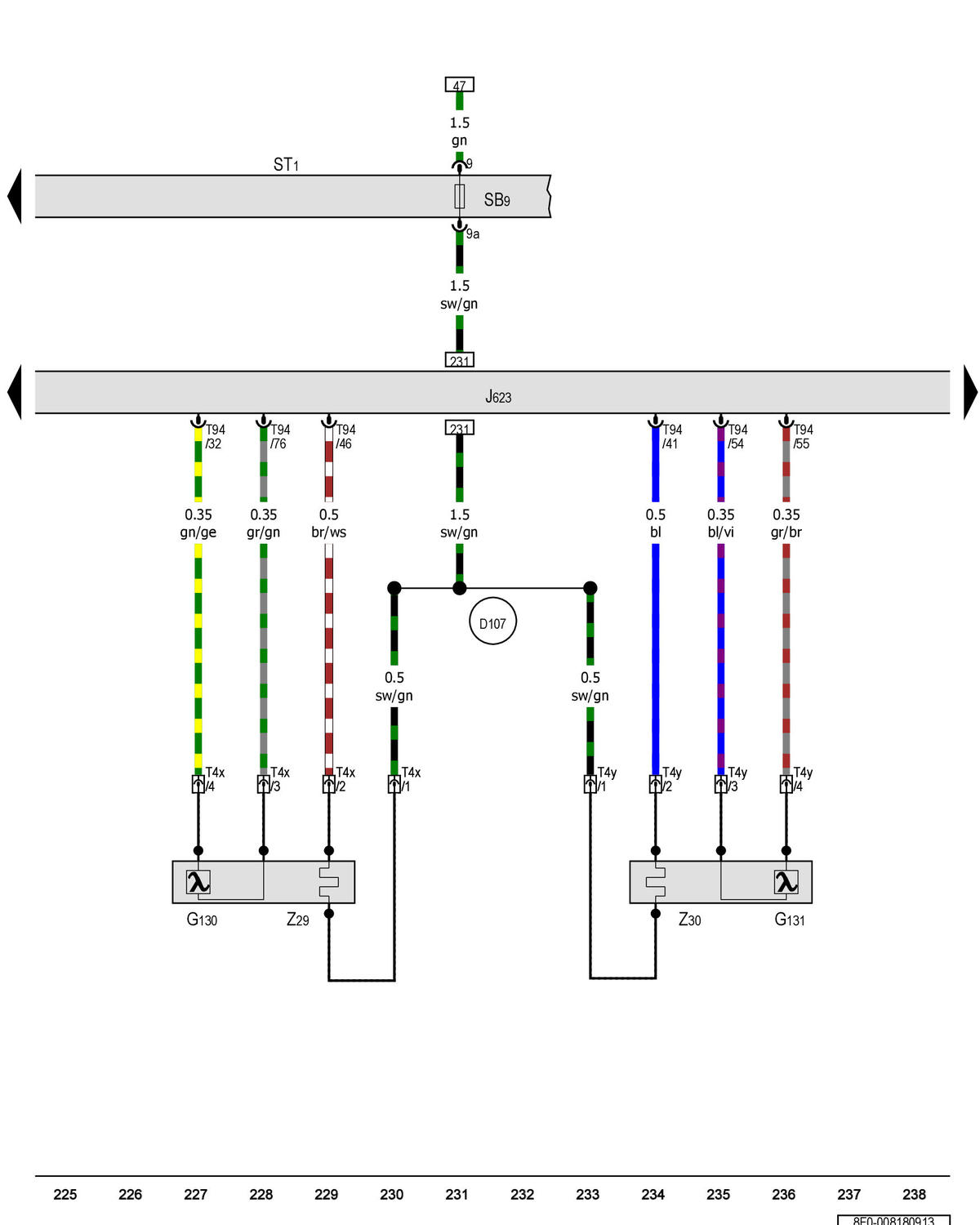

Oxygen Sensor After Three Way Catalytic Converter, Oxygen Sensor 2 After Catalytic Converter
>>
Notes
Oxygen Sensor After Three Way Catalytic Converter, Oxygen Sensor 2 After Catalytic Converter: Notes
Courtesy of AUDI OF AMERICA, LLC
Courtesy of AUDI OF AMERICA, LLC
