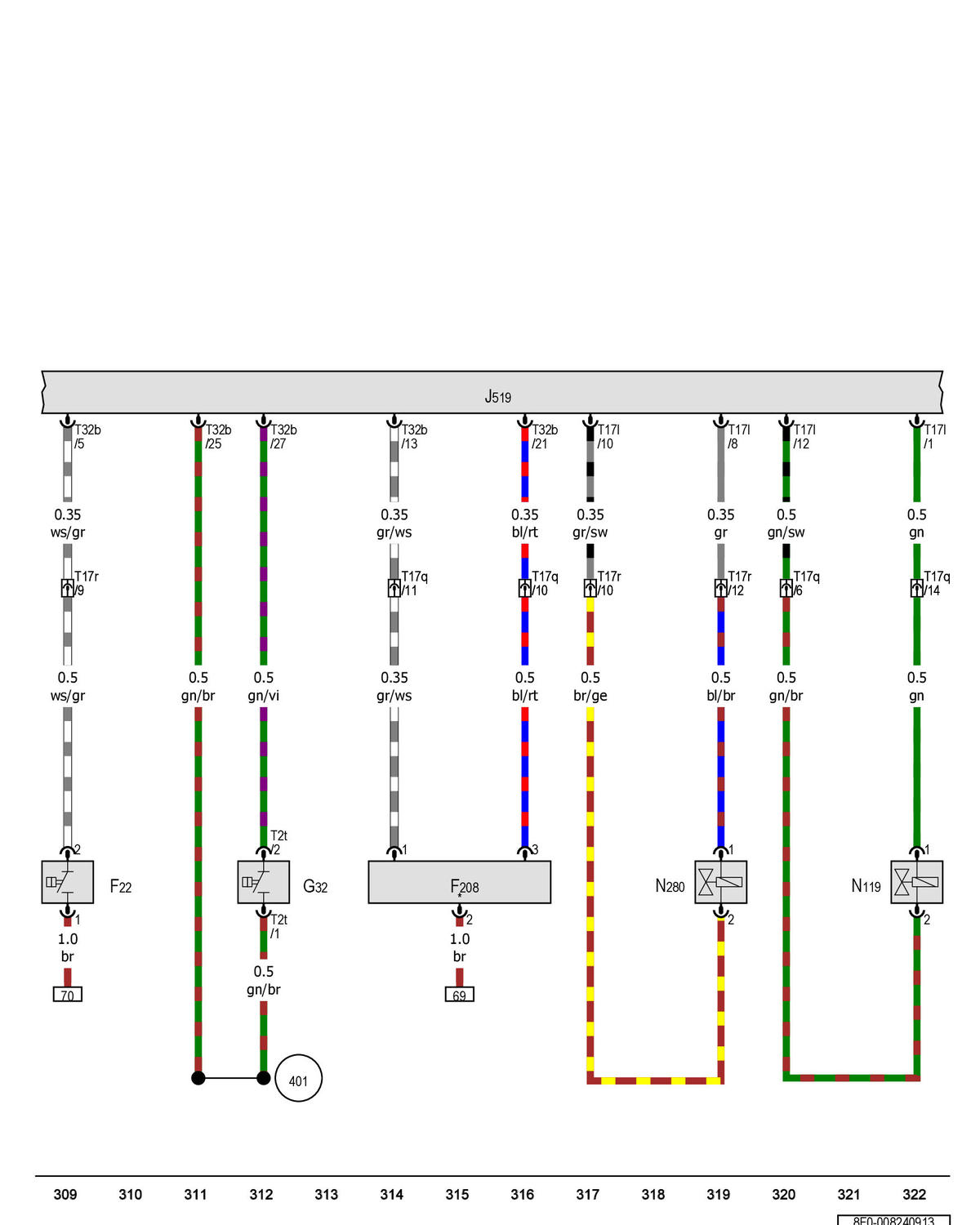

Oil Pressure Switch, Engine Coolant Level Sensor, Vehicle Electrical System Control Module: Notes

GWW8F0-008240913

Courtesy of AUDI OF AMERICA, LLC
