Intake Manifold Runner Position Sensor, Intake Manifold Runner Position Sensor 2, Right ELECTROHYDRAULIC Engine Mount Solenoid Valve: Notes

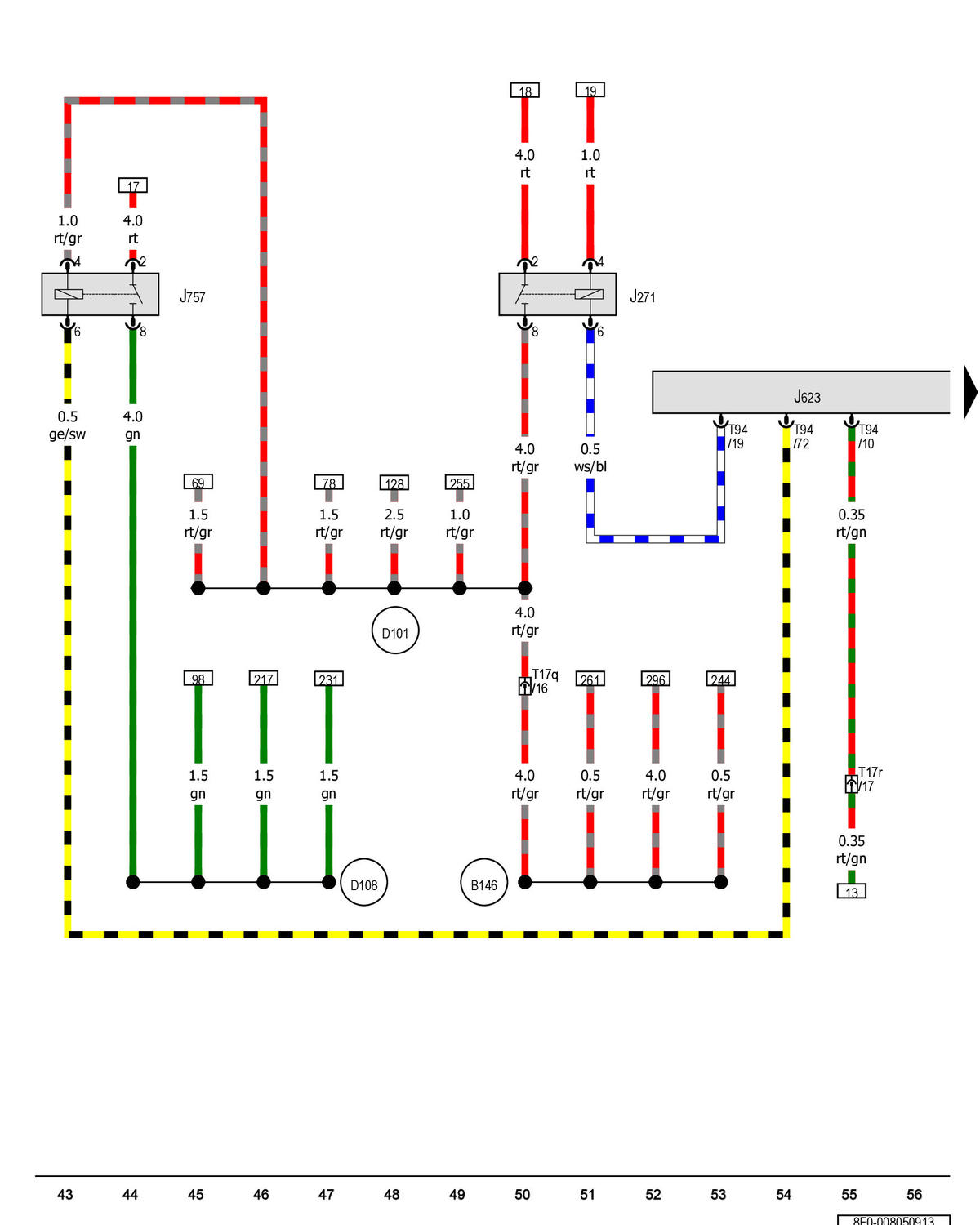

GWW8F0-008080913

Courtesy of AUDI OF AMERICA, LLC
