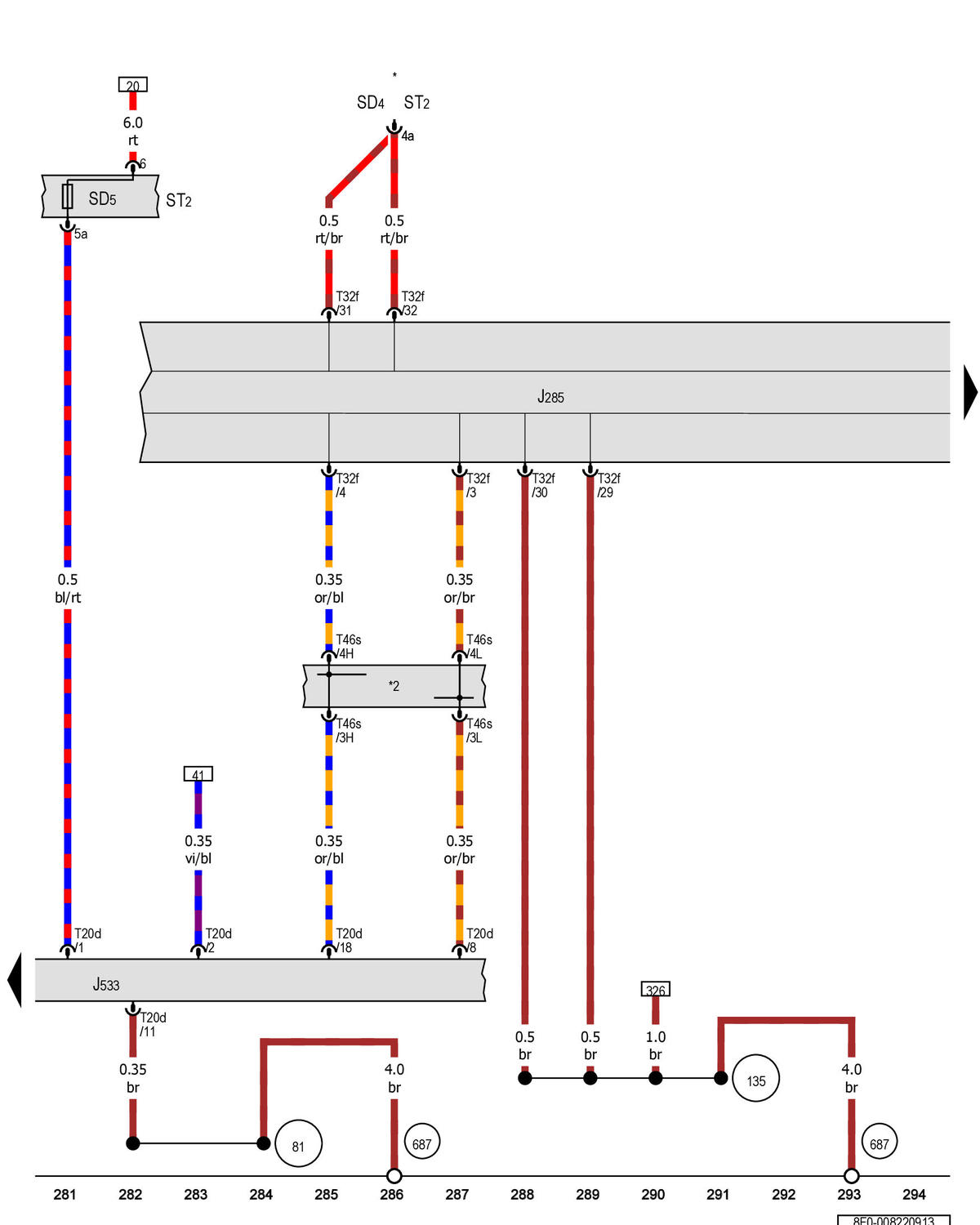

Instrument Cluster Control Module, Data Bus On Board Diagnostic Interface: Notes

GWW8F0-008220913

Courtesy of AUDI OF AMERICA, LLC
