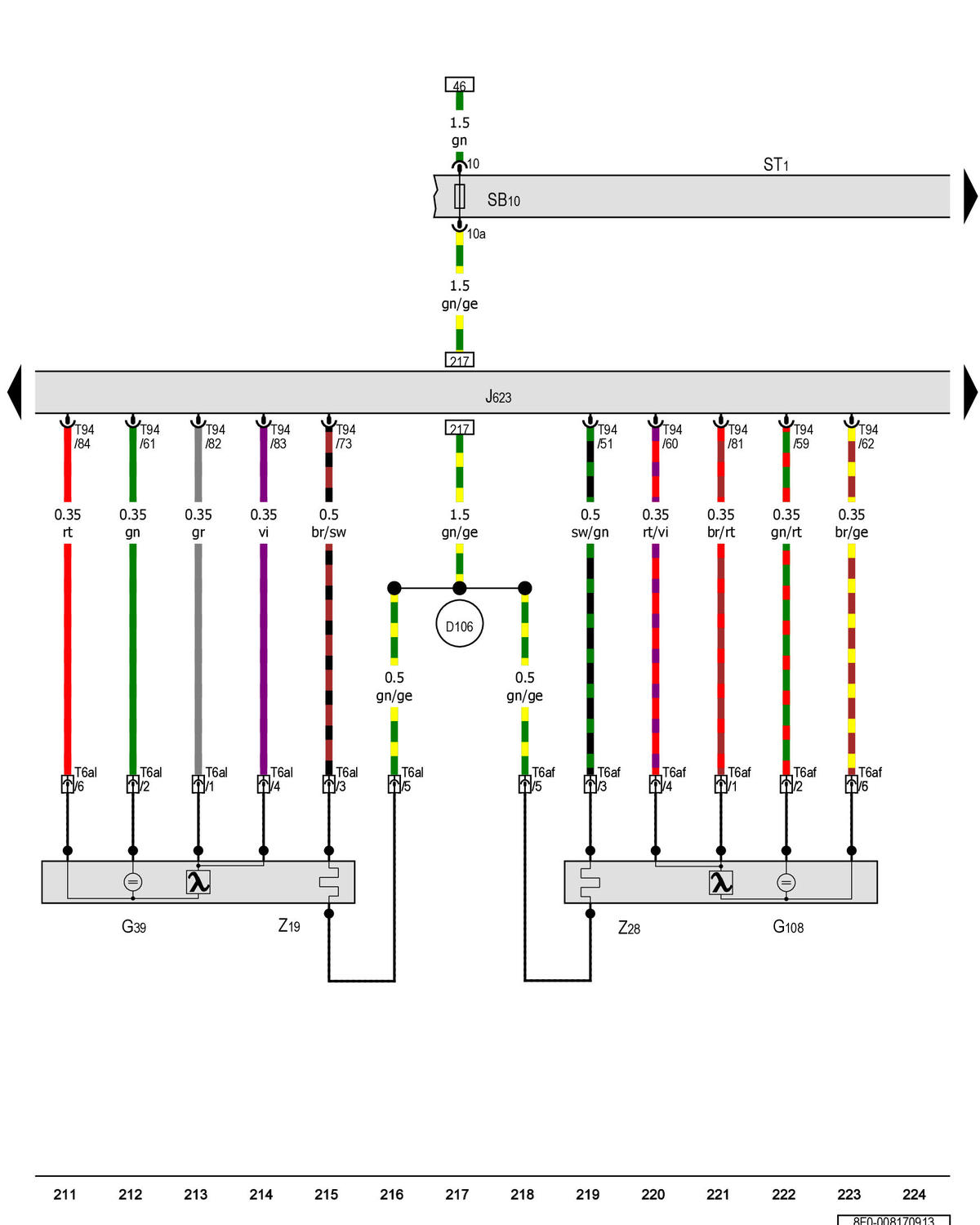

Heated Oxygen Sensor, Heated Oxygen Sensor 2: Notes

GWW8F0-008170913

Courtesy of AUDI OF AMERICA, LLC
