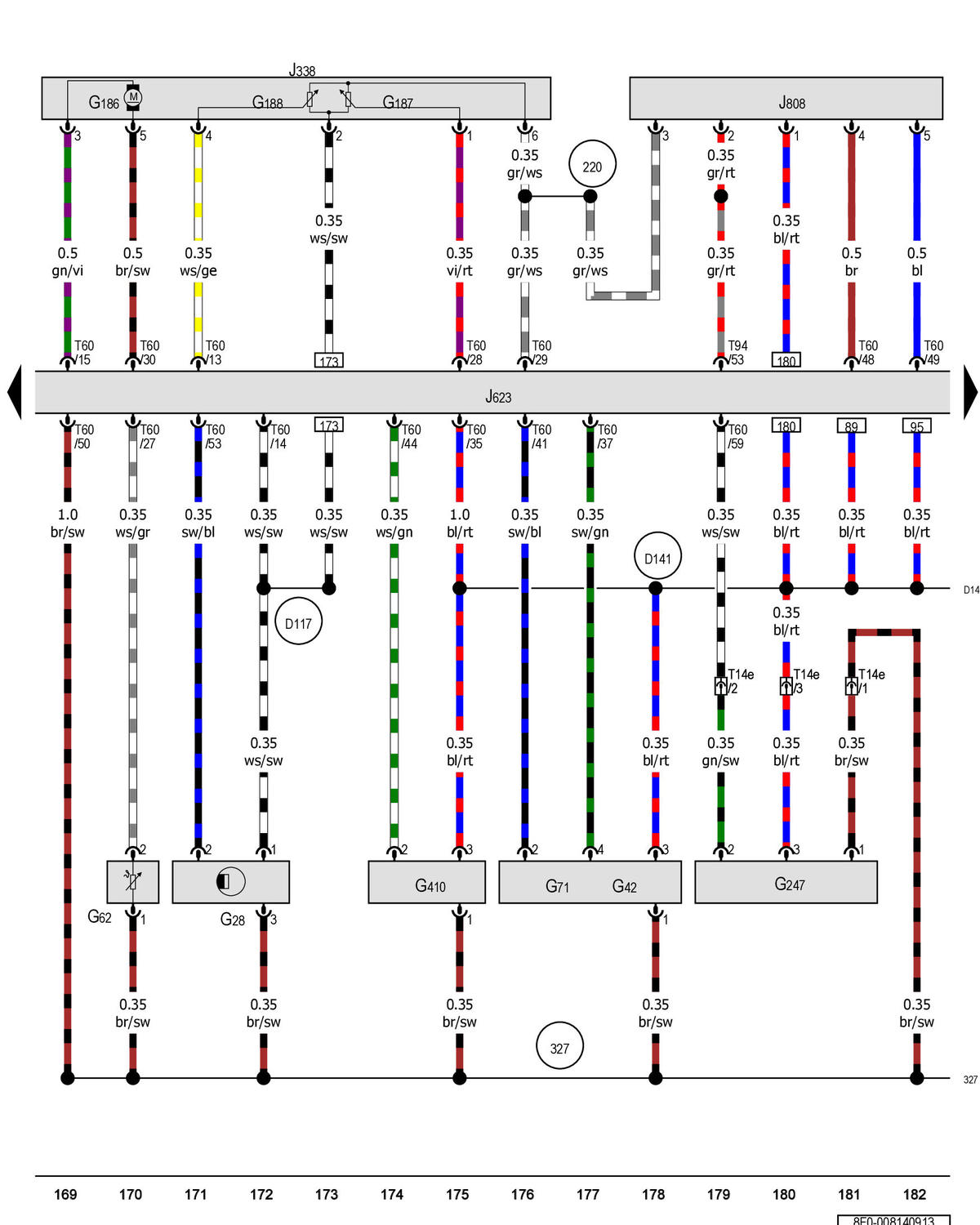

Engine Speed Sensor, Engine Coolant Temperature Sensor, Fuel Pressure Sensor, Throttle Valve Control Module: Notes

GWW8F0-008140913
