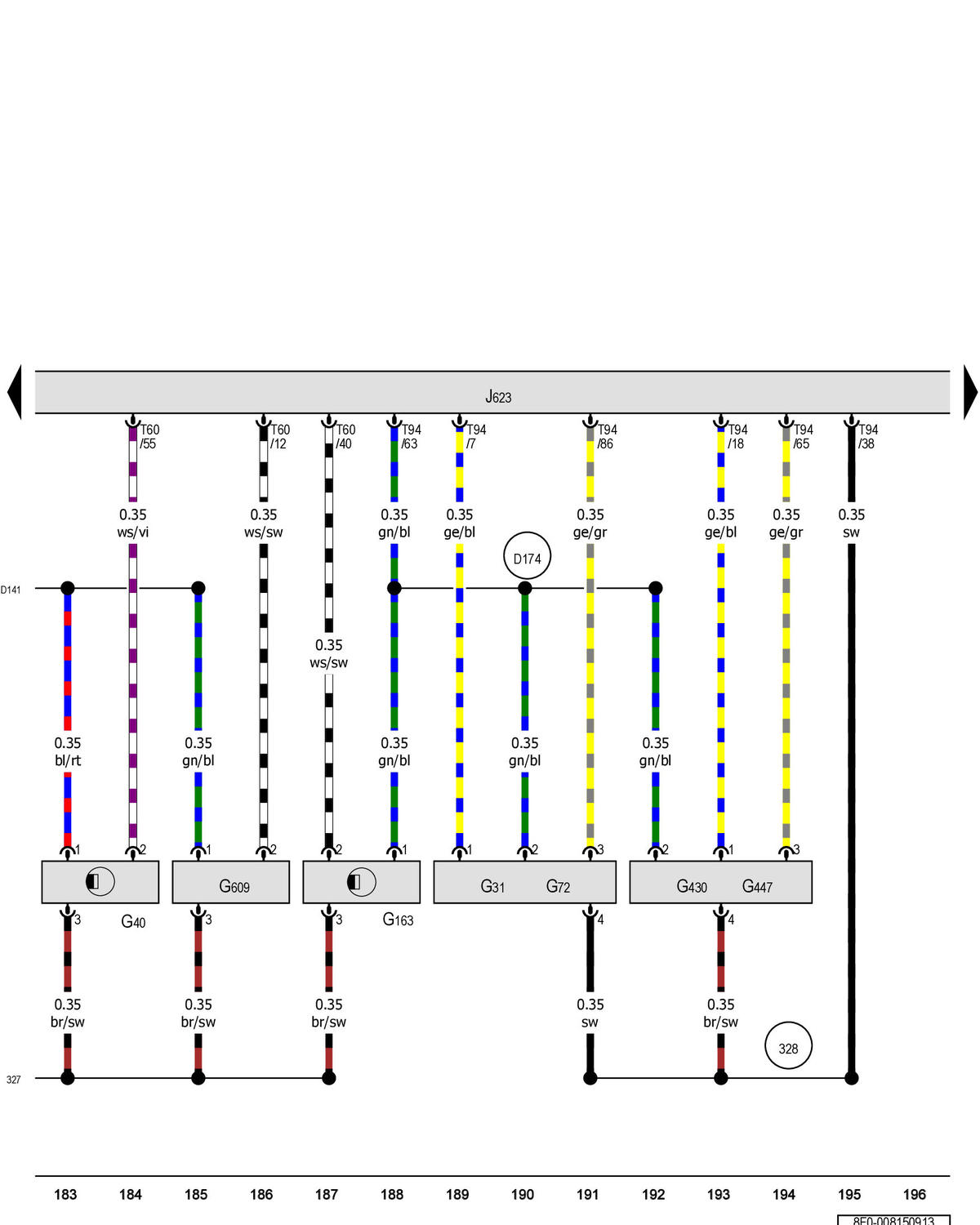

Camshaft Position Sensor, Camshaft Position Sensor 2, Intake Manifold Temperature Sensor 2: Notes

GWW8F0-008150913

Courtesy of AUDI OF AMERICA, LLC
