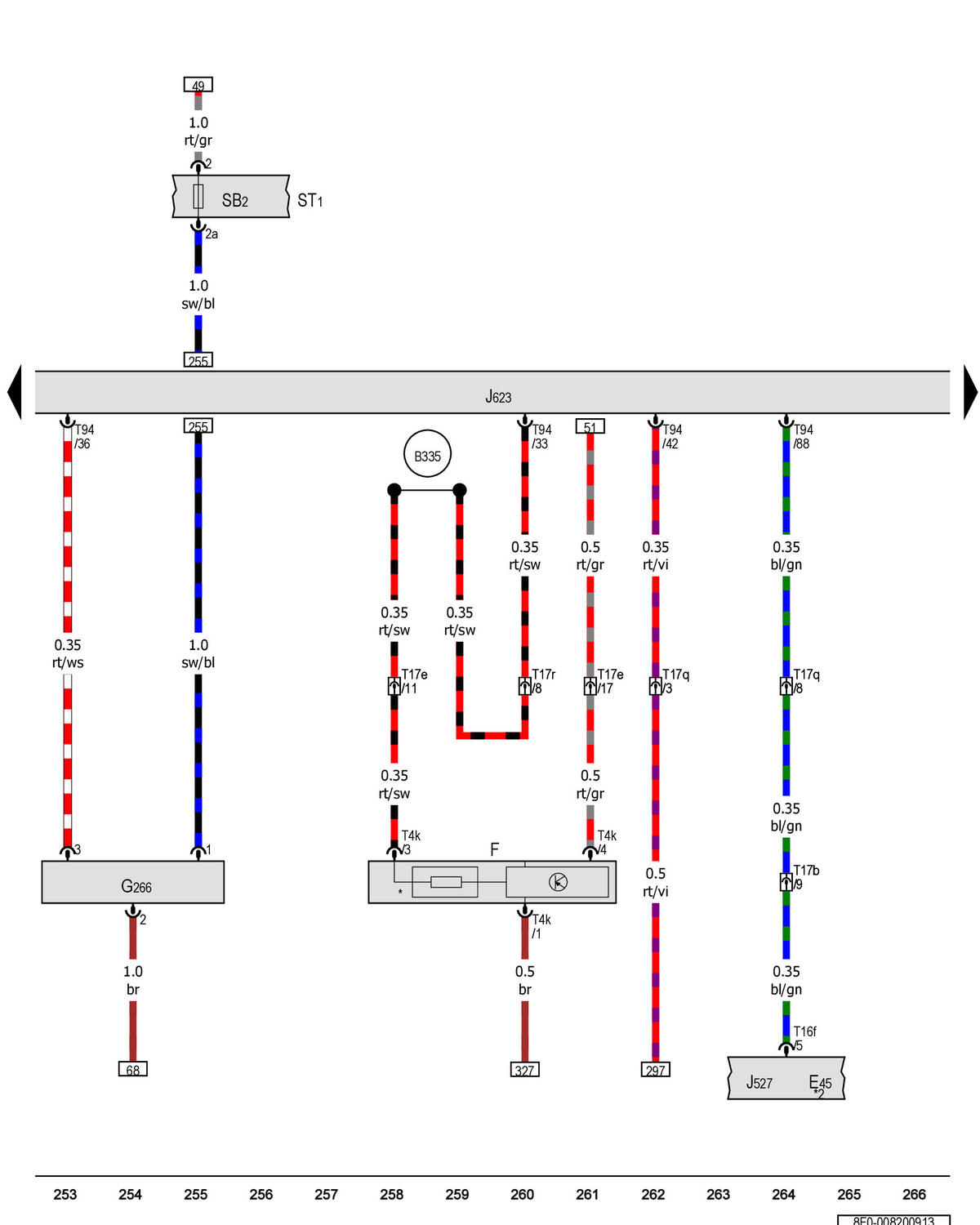

Brake Lamp Switch, Oil Level Thermal Sensor, Steering Column Electronics Control Module: Notes

GWW8F0-008200913

Courtesy of AUDI OF AMERICA, LLC
