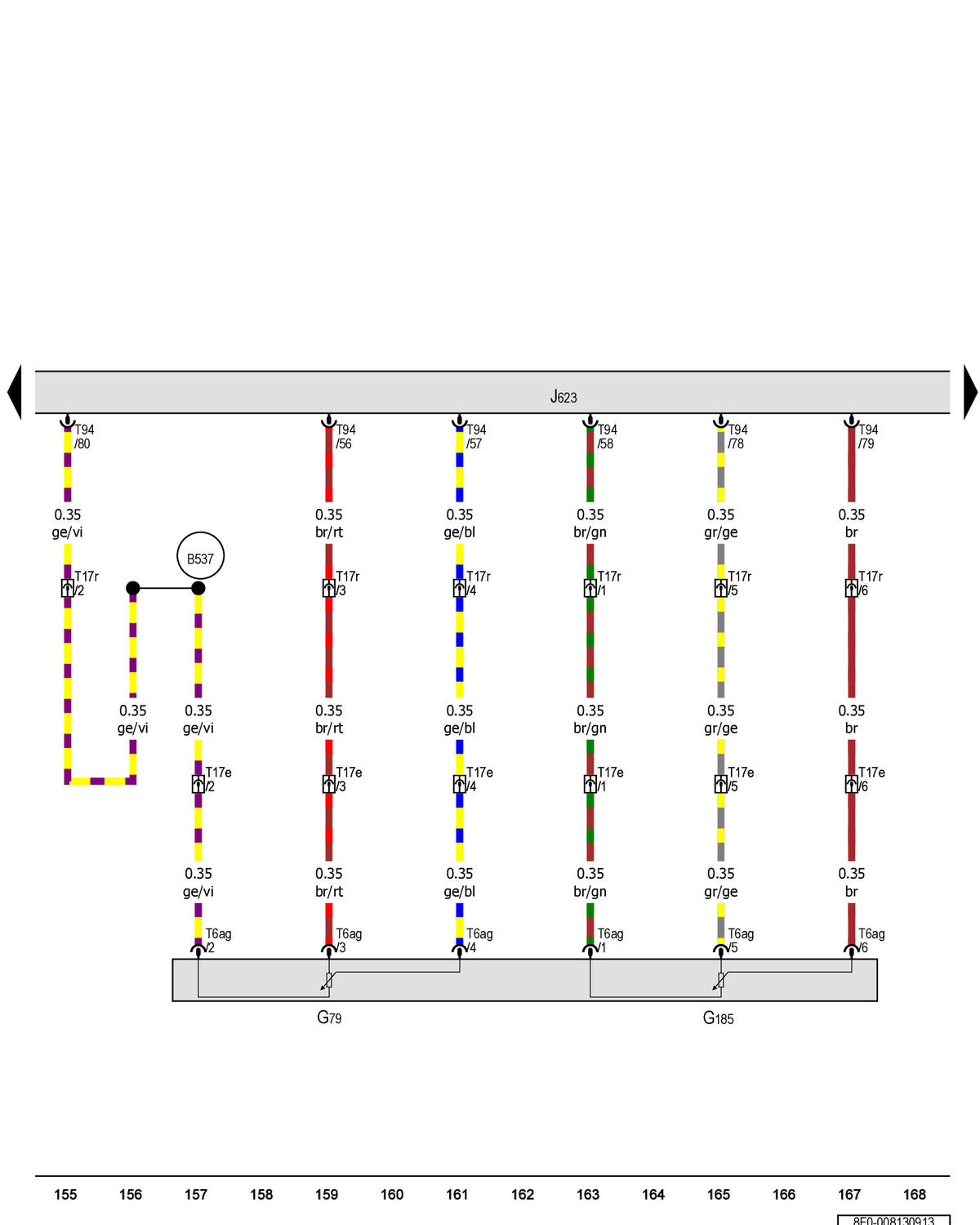

Accelerator Pedal Position Sensor, Accelerator Pedal Position Sensor 2: Notes

GWW8F0-008130913

Courtesy of AUDI OF AMERICA, LLC
