Fender Dimensions: Notes

Name Badge V6 T

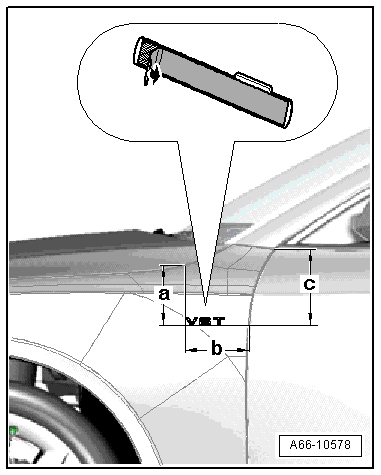

-- Press the name badges firmly onto the body according to the dimensions.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Dimension -a- = 141 mm
• Dimension -b- = 136 mm
• Dimension -c- = 175 mm
