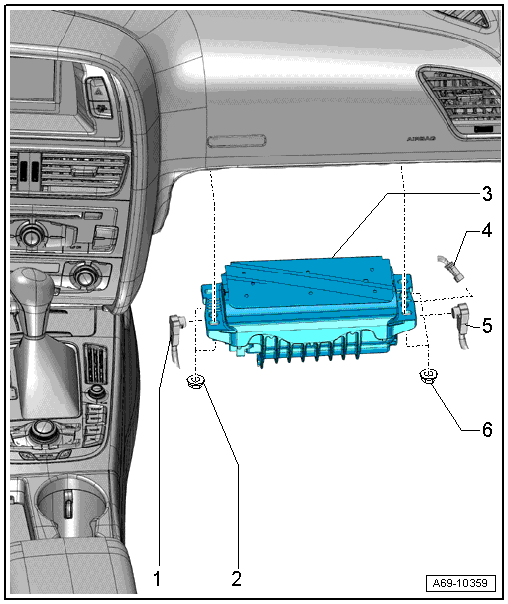

Overview - Front Passenger Airbag
Courtesy of AUDI OF AMERICA, LLC
- Connector
- For Front Passenger Airbag Igniter 2 -N132-
- Depending on the date of manufacture
.
- Nut
- 8 Nm
- Quantity: 2
- Always replace if removed
- Front Passenger Airbag
- With Front Passenger Airbag Igniter 1 -N131-
- With Front Passenger Airbag Igniter 2 -N132- depending on the date of manufacture.
WARNING:
- Follow all Safety Precautions when working with pyrotechnic components. Refer to SAFETY PRECAUTIONS
.
- Follow the allocation of the airbag unit to the instrument panel.
- Locking and activating possible with key switch
- Removing and installing. Refer to FRONT PASSENGER AIRBAG UNIT WITH IGNITER, REMOVING AND INSTALLING .
- Ground Cable
- Connector
- For Front Passenger Airbag Igniter 1 -N131-
- Nut
- 8 Nm
- Quantity: 2
- Always replace if removed
