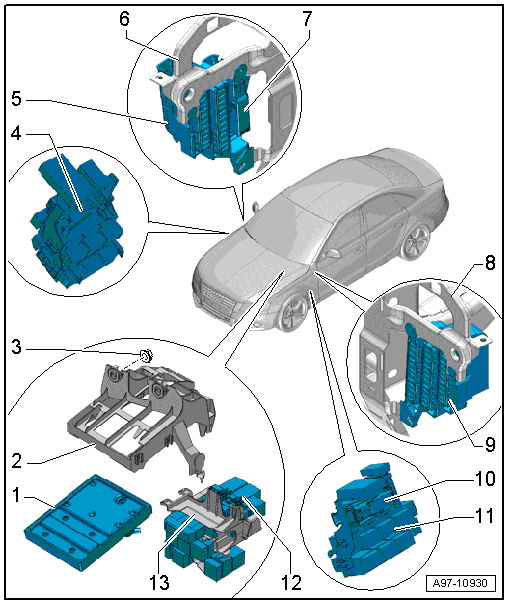

Overview - Instrument Panel Relay Carrier/Fuse Carrier And A-Pillar Relay Carrier/Fuse Carrier
- Vehicle Electrical System Control Module -J519-
- Removing and installing. Refer to Vehicle Electrical System Control Module -J519-, REMOVING AND INSTALLING .
- Relay/Fuse Carrier Mount with Vehicle Electrical System Control Module -J519-
- Removing and installing. Refer to RELAY/FUSE CARRIER MOUNT WITH Vehicle Electrical System Control Module -J519-, REMOVING AND INSTALLING .
- Nut
- 3 Nm
- Quantity: 2
- Front Passenger Side A-Pillar 6-Pin Connector Station
- Removing and installing. Refer to FRONT PASSENGER SIDE A-PILLAR 6-PIN CONNECTOR STATION, REMOVING AND INSTALLING .
- Fuse Panel D -SD-
- On the right of the instrument panel
- Removing and installing. Refer to Fuse Panel D -SD- WITH RIGHT INSTRUMENT PANEL FUSE CARRIER, REMOVING AND INSTALLING .
- Right Central Tube
- Instrument Panel CAN Cut-Off Connector -T46s-
- Removing and installing. Refer to Instrument Panel CAN Cut-Off Connector -T46s-, REMOVING AND INSTALLING .
- Left Central Tube
- Fuse Panel C -SC-
- On the left side of the instrument panel
- Removing and installing. Refer to Fuse Panel C -SC- WITH LEFT INSTRUMENT PANEL FUSE PANEL, REMOVING AND INSTALLING .
- Interior CAN Cut-Off Connector -T46i-
- Removing and installing. Refer to Interior CAN Cut-Off Connector -T46i-, REMOVING AND INSTALLING .
- Driver Side A-Pillar 6-Pin Connector Station
- On the left side of the instrument panel
- Removing and installing. Refer to DRIVER SIDE A-PILLAR 6-PIN CONNECTOR STATION, REMOVING AND INSTALLING .
- 3-Pin Relay/Fuse Carrier
- Under the instrument panel on the left side
- Removing and installing. Refer to 3-PIN RELAY/FUSE CARRIER, REMOVING AND INSTALLING .
- 4-Pin Relay/Fuse Carrier and Threaded Connection
- Under the instrument panel on the left side
- Removing and installing. Refer to 4-PIN RELAY/FUSE CARRIER WITH THREADED CONNECTION, REMOVING AND INSTALLING .
- Wire - 9 Nm
- Wire - 9 Nm
- 4-pin relay/fuse carrier
