Seatbench, removing and installing - vehicles from 11.04: Notes

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2008 Audi A4, 2007 Audi S4, and 2007 Audi RS 4. However, it is still accessible from the selected car via links, so may be relevant.

Removing

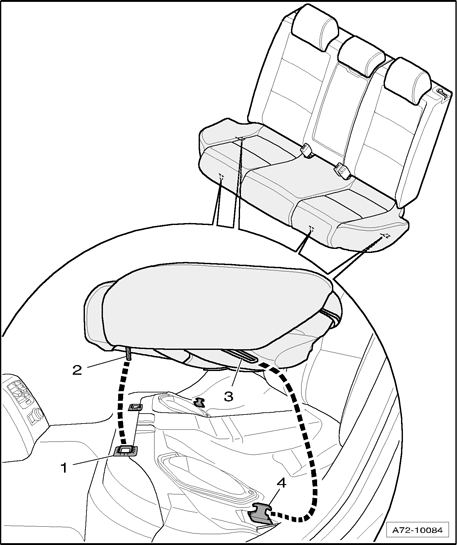

Fig 1: Seatbench - Vehicles From 11.04 Remove/Install Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove seatbench upward at front edge and out of mounting - 1 - on left and right side.
Disengage seatbench from mounting - 4 - on left and right, forcefully push seatbench backward to do so.
On vehicles with seat heaters, lift seatbench far enough so that electrical harness connectors can be disconnected.
Remove electrical harness connector for side airbag from groove Side airbag cable connector .

Remove seat bench from vehicle.

Installing

Installation is reverse of removal. Observe the following when doing so:

CAUTION: Mountings must be replaced after each removal of seatbench Replacing mountings .
