Inner part, removing from outer part

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2008 Audi A4, 2007 Audi S4, and 2007 Audi RS 4. However, it is still accessible from the selected car via links, so may be relevant.

Open storage compartment.

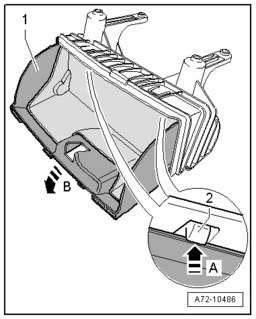

Fig 1: Inner Part, Removing From Outer Part

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Press retainers - 2 - (Qty. 2) upward in - direction of arrow A -.
Tip inner part - 1 - down in - direction of arrow B -.

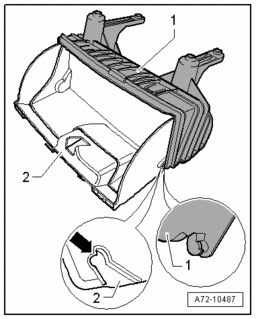

Fig 2: Removing Outer Part From Guide On Inner Part

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove outer part - 1 - from guide - arrow - on inner part - 2 -.

Storage compartment, assembling

Assembly is performed in the reverse order of removal. Observe the following when doing so:

Fig 3: Storage Compartment, Assembling

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Engage torsion spring - 1 - so that shorter side - arrow A - is supported on inner part - 2 - and longer side - arrow B - is supported on handle - 3 -.
