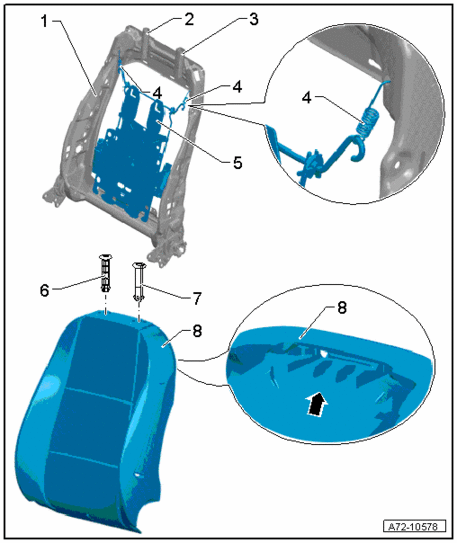

Recaro front seats without active head restraint system, assembly overview
WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2008 Audi A4, 2007 Audi S4, and 2007 Audi RS 4. However, it is still accessible from the selected car via links, so may be relevant.
Versions for specific countries: Vehicles from 06.06
Rest of world: Vehicles from 11.06
NOTE:
- With the introduction of backrests without the active head restraint system, the active head restraint system has been discontinued.
- The upper area of the backrest frame for backrests without the active head restraint system was changed.
- Inclination adjustment has been changed on headrests for backrest without active head restraint system.
- The rear side of the upholstery was adapted in the upper area of the changed backrest frame.
- With the introduction of backrests without the active head restraint system, the mount for four-way lumbar support in the upper area of the backrest frame has changed.
- Removal and installation of curvature and height adjustment motors for four-way lumbar support is similar to removal and installation on backrests with active head restraint system.
- The covers are identical for backrests with and without the active head restraint system.
CAUTION:
For safety reasons, headrests from vehicles with the active head restraint system should not be used on seats without the active head restraint system.
1 - Backrest frame
2 - Right headrest guide mount
- Welded with backrest frame
3 - Left headrest guide mount
- Welded with backrest frame
4 - Spring
- Qty. 2
- Engaged in backrest frame
- To upper four-way lumbar support mount
5 - four-way lumbar support
- Removing and installing → Four-way lumbar support, removing and installing
6 - Right headrest guide
- Removing and installing → Headrest guides, removing and installing - vehicles from 11.04
7 - Left headrest guide
- Removing and installing → Headrest guides, removing and installing - vehicles from 11.04
8 - Upholstery
- Rear side adapted to new backrest in upper area
- Removing and installing → Cover and cushion for backrest, removing and installing (sport seat, standard seat)
