Transmission Carrier And Console, Removing And Installing: Removing

Fig 1: Identifying Front/Rear Noise Insulation

Courtesy of AUDI OF AMERICA, LLC

-- Activate the vehicle lift mode if the vehicle has air suspension. Refer to Self-Leveling Suspension .

-- Remove the bolts and the rear noise insulation -2-.

-- Position the Engine/Gearbox JackVAG1383A with the Engine/Gearbox Jack - Gearbox SupportT10337 under the transfer case.

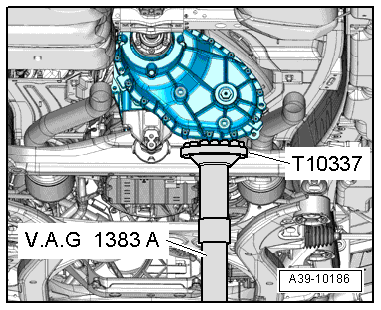

Fig 2: Identifying Engine/Transmission Jack V.A.G 1383A And Installed Gearbox Support T10337

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -1 and 2- from the Engine/Gearbox Jack - Gearbox Support.

Fig 3: Identifying Transfer Case Support Bolts -1 And 2-

Courtesy of AUDI OF AMERICA, LLC

-- Lower the transfer case slightly.

-- Remove the Engine/Gearbox Jack - Gearbox Support from the transfer case bracket -arrows-.

Fig 4: Identifying Bolts -Arrows- And Transfer Case Bracket

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -1 and 2- and removed the bracket from the transfer case.
