Transfer Case, Transporting

Special tools and workshop equipment required

• Engine/Gearbox Support Shackle (2 pc.)10-222A/12
• Shop CraneVAS 6100

Procedure

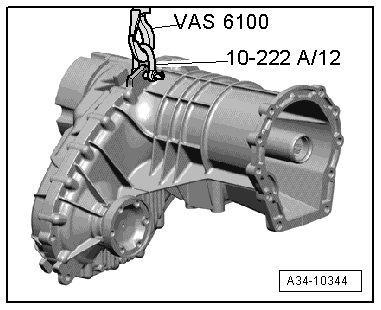

Fig 1: Identifying Shackle 10-222 A/12 Installed On Shop Crane VAS 6100

Courtesy of AUDI OF AMERICA, LLC

-- Attach the Engine/Gearbox Support Shackle (2 pc.)10-222A/12 to the lifting eye on the transfer case, as illustrated.

-- Attach the Shop CraneVAS 6100 to the Engine/Gearbox Support Shackle (2 pc.)10-222A/12 and lift the transfer case off the Engine/Gearbox JackVAG 1383A.
