Transfer Case, Checking Transmission Fluid Level
Special tools and workshop equipment required
- Shop Crane - Drip TrayVAS 6208
Procedure
NOTE:
General Repair Instructions. Refer to GENERAL REPAIR INFORMATION .
When checking oil level, vehicle must be on a level surface.
-- Place the Shop Crane - Drip TrayVAS 6208 under the transfer case.

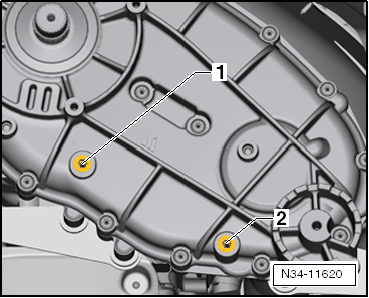

-- Remove the transmission fluid filler plug -1-.
- The level is correct when the transfer case is filled up to the bottom edge of oil filler hole -1-.
-- Fill the transmission fluid if necessary.
Refer to TRANSFER CASE, CHECKING TRANSMISSION FLUID LEVEL .
| Component | Nm |
|---|---|
| Oil filler screw on transfer case | 20 |
|
|
