Special Tools

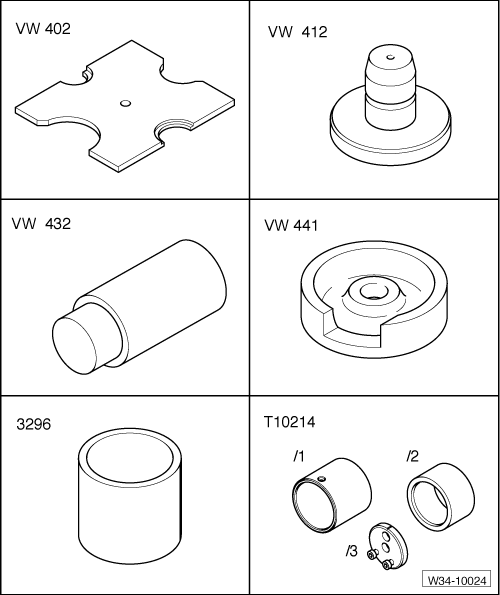

Fig 1: Identifying Special Tools -- Bonded Rubber Bushing In Transmission Carrier, Replacing

Courtesy of AUDI OF AMERICA, LLC

Special tools and workshop equipment required

• Press PlateVW 402
• Press Piece - Multiple UseVW 412
• Press Piece - Bushing - 50mm DiameterVW 432
• Base BlockVW 441
• Press Piece - Reverse Gear Syncro3296
• Gearbox Carrier Mounting Assembly ToolT10214

Fig 2: Identifying Identifying Special Tools -- Transmission Support, Replacing

Courtesy of AUDI OF AMERICA, LLC

Special tools and workshop equipment required

• Engine/Gearbox Jack - Gearbox Support3282
• Engine/Gearbox JackVAG 1383A
• Counterhold - Kit - Multiple UseT10172 with adapters T10172/6
• Engine Support - Basic SetT40091
• T40093/6 from Engine Support - Supplement KitT40093A

Fig 3: Identifying Identifying Special Tools -- Engine/Transmission, Support And Removal

Courtesy of AUDI OF AMERICA, LLC

Special tools and workshop equipment required

• Engine/Gearbox JackVAG 1383A
• Used Oil Collection and Extraction Unit VAG 1782
• Puller - Multiple UseVW 391
• Puller - Unit InjectorT10055 with Puller - Unit Injector - Adapter 2T10055/2
• Counterhold - Kit - Multiple UseT10172 and adapters T10172/6
• Engine/Gearbox Jack - Gearbox SupportT10337

Special tools and workshop equipment required

• Engine/Gearbox Support Shackle (2 pc.)10-222A/12
  Fig 4: Identifying Shackle 10 - 222 A/12

  Courtesy of AUDI OF AMERICA, LLC
• Shop CraneVAS 6100
  Fig 5: Identifying Shop Crane VAS 6100

  Courtesy of AUDI OF AMERICA, LLC
• Puller - Unit Injector - Adapter 2T10055/2
  Fig 6: Identifying Adapter T10055/2

  Courtesy of AUDI OF AMERICA, LLC
• Seal Installer - Input ShaftT10448
  Fig 7: Identifying Thrust Piece T10448

  Courtesy of AUDI OF AMERICA, LLC
• Inductive HeaterVAS 6414
  Fig 8: Identifying Inductive Heater VAS 6414

  Courtesy of AUDI OF AMERICA, LLC
• Seal Installer - Hollow ShaftT10380
  Fig 9: Identifying Thrust Piece - T10380-

  Courtesy of AUDI OF AMERICA, LLC
• Seal Installer - Inner Output ShaftT10399
  Fig 10: Identifying Assembly Tool T10399

  Courtesy of AUDI OF AMERICA, LLC
• Seal Installer - Flange ShaftT10449
  Fig 11: Identifying Thrust Piece T10449

  Courtesy of AUDI OF AMERICA, LLC
• Seal Installer - Flange ShaftT10450
  Fig 12: Identifying Thrust Piece T10450

  Courtesy of AUDI OF AMERICA, LLC
• Drip tray for Shop CranesVAS 6208
  Fig 13: Drip Tray For Shop Crane VAS 6208

  Courtesy of AUDI OF AMERICA, LLC
