General Information

The transfer case 0BU is allocated to the 8-speed automatic transmission 0C8.

Code letters, allocation CODE LETTERS, TRANSMISSION ALLOCATION AND CAPACITIES .

Location on Transfer Case

Fig 1: Locating Identification On Transfer Case -Arrow-

Courtesy of AUDI OF AMERICA, LLC

Transfer case 0BU, code letters and manufacture date -arrow-.

Transfer Case Identification

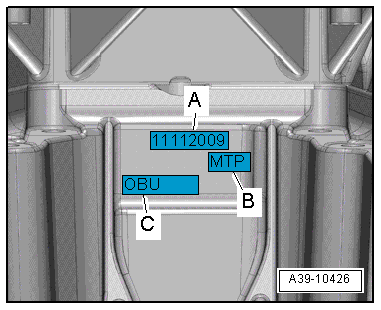

Fig 2: Transfer Case Identification

Courtesy of AUDI OF AMERICA, LLC

• -A- Transfer case date of manufacture.
• -B- Code letters "MTP".
• -C- transfer case "0BU" with part number.

Additional data depend on the manufacturing.
