General Information
The front final drive 0BN/0BP is assigned to automatic transmission 0C8.
Allocation. Refer to CODE, TRANSMISSION ALLOCATION, RATIOS AND CAPACITIES .
Location on Rear Final Drive
Rear final drive 0BN, 0BP, code letters and date of manufacture -arrow-.

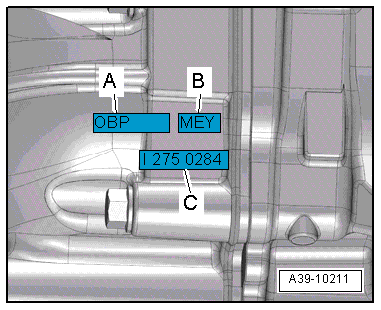

Rear Final Drive Identification
- -A- Rear final driven "0BP" with part number.
- -B- Code letters "MEY".
- -C- Rear final drive date of manufacture.
| Example: | I | 275 | 0284 |
|---|---|---|---|
| I | I | I | |
| Year of manufacture -2009- I = 2009, K = 2010, L = 2011, M = 2012... | Day of manufacture -275. calendar day- (always three digits) | day of manufacture serial number |
Additional data depend on the manufacturing.
