Shaft Seals, Rear Final Drive 0BN And 0BP Overview

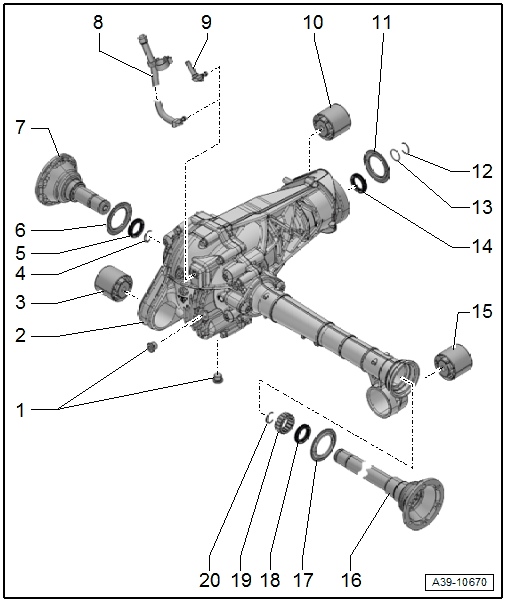

Fig 1: Rear Final Drive Shaft Seals Components Location

Courtesy of AUDI OF AMERICA, LLC

1. Sealing Plugs
   • Install with Locking FluidAMV 185 101 A1
   • Replace
   • 35 Nm
2. Front Final Drive
3. Bonded Rubber Bushing on the Front Housing
   • Removing and Installing. Refer to BONDED RUBBER BUSHING IN FRONT HOUSING, REMOVING AND INSTALLING .
4. Locking Ring
   • Replace after removing
5. Shaft Seal
   • For the right flange shaft
   • Replacing. Refer to RIGHT FLANGE SHAFT SEAL, REPLACING .
6. Ring
7. Right Flange Shaft
8. Bleeder
9. Bleeder
10. Bonded Rubber Bushing on the Flange/Driveshaft
    • Removing and Installing. Refer to BONDED RUBBER BUSHING, FLANGE SHAFT AND DRIVEHAFT, REMOVING AND INSTALLING .
11. Ring
12. Locking Ring
    • Replace after removing
13. O-Ring
    • Replace after removing
14. Shaft Seal
    • For the flange/Driveshaft
    • Replacing. Refer to SEAL FOR FLANGE/DRIVESHAFT ON FRONT FINAL DRIVE, REPLACING (FINAL DRIVE REMOVED) .
15. Bonded Rubber Bushing on the Left Housing
    • Removing and Installing. Refer to BONDED RUBBER BUSHING ON LEFT HOUSING, REMOVING AND INSTALLING .
16. Left Flange Shaft
17. Ring
18. Shaft Seal
    • For the left flange shaft.
    • Replacing. Refer to LEFT FLANGE SHAFT SEAL, REMOVING AND INSTALLING .
19. Needle Bearing
    • Replacing. Refer to LEFT FLANGE SHAFT NEEDLE BEARING, REPLACING .
20. Locking Ring
    • Replace after removing.
