Bonded Rubber Bushing, Flange Shaft And DRIVEHAFT, Removing And Installing: Installing

Fig 1: Identifying Vertical Alignment Of Small Hole And Large Recesses

Courtesy of AUDI OF AMERICA, LLC

-- Mount the bonded rubber bushing on the final drive in its installed position.

NOTE:

The small hole -A- and the large recesses on the bonded rubber bushing -arrows- must be vertical to the final drive.

-- Install the bonded rubber bushing.

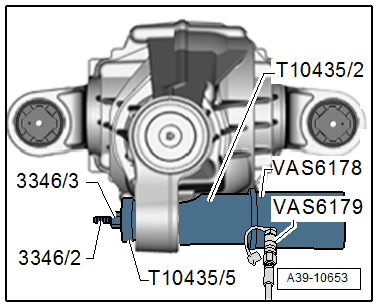

Fig 2: VAS 6178 Location

Courtesy of AUDI OF AMERICA, LLC
