Rear Final Drive Overview

Rear final drive designation and allocation. Refer to REAR FINAL DRIVE DESIGNATION 0BN AND 0BP .

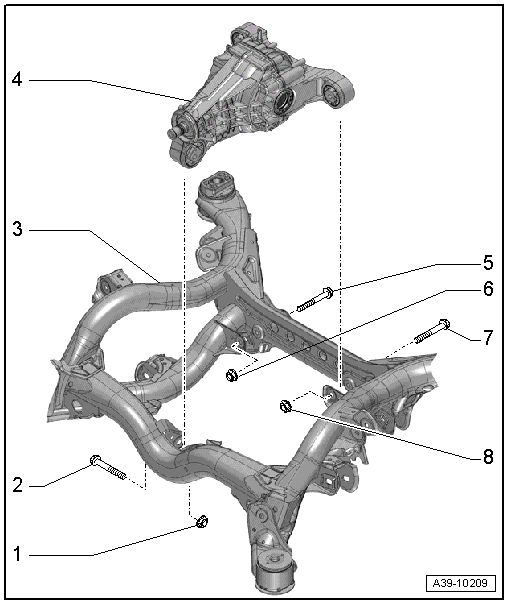

Fig 1: Identifying Rear Final Drive Overview

Courtesy of AUDI OF AMERICA, LLC

Nut
- 90 Nm +90°
- Replace
Bolt
- Replace
Rear Subframe
Rear Final Drive 0BN or 0BP
- Designate and allocate rear final drive. Refer to REAR FINAL DRIVE DESIGNATION 0BN AND 0BP .
- Removing and Installing. Refer to REAR FINAL DRIVE, REMOVING AND INSTALLING .
Bolt
- Replace
Nut
- 90 Nm +90°
- Replace
Bolt
- Replace
Nut
- 90 Nm +90°
- Replace
