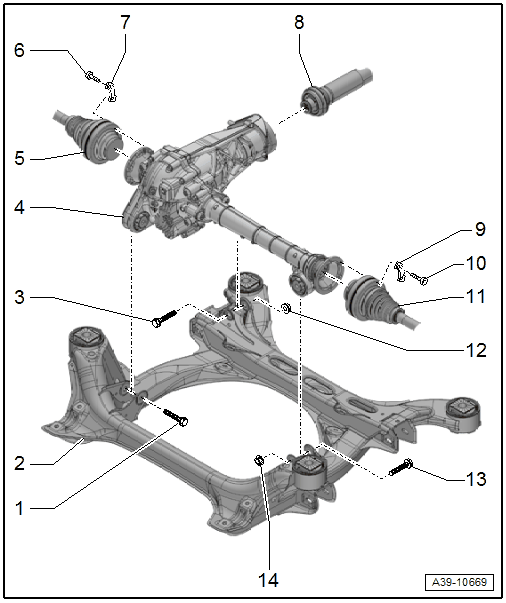

Front Final Drive Overview
- Bolt
- 90 Nm +90°
- Replace
- Front Subframe
- Bolt
- Replace
- Front Final Drive 0BM and 0C1
- Front final drive designation and allocation. Refer to FRONT FINAL DRIVE DESIGNATION 0BM AND 0C1 .
- Removing and Installing:
- Vehicles with 3.0L TFSI engine. Refer to FRONT FINAL DRIVE, REMOVING AND INSTALLING .
- Vehicles with a 3.0L TDI engine. Refer to FRONT FINAL DRIVE, REMOVING AND INSTALLING .
- Vehicles with a 6.0L TDI engine. Refer to FRONT FINAL DRIVE, REMOVING AND INSTALLING
- The color markings on the flange and front Drive Axle must align with each other.
- Right Drive Axle
- Removing and Installing Rear Suspension
- Bolt
- Tightening Specifications Rear Suspension
- Plate
- Front Driveshaft
- Overview. Refer to FRONT DRIVESHAFT OVERVIEW .
- Plate
- Bolt
- Tightening Specifications Rear Suspension
- Left Drive Axle
- Removing and Installing Rear Suspension
- Nut
- 90 Nm +90°
- Replace
- Bolt
- Replace
- Nut
- 90 Nm +90°
- Replace
