Tail Lamps Overview

LED tail lamps have LED bulbs and are integrated in the tail lamps. The LEDs cannot be replaced; the entire tail lamp must be replaced.

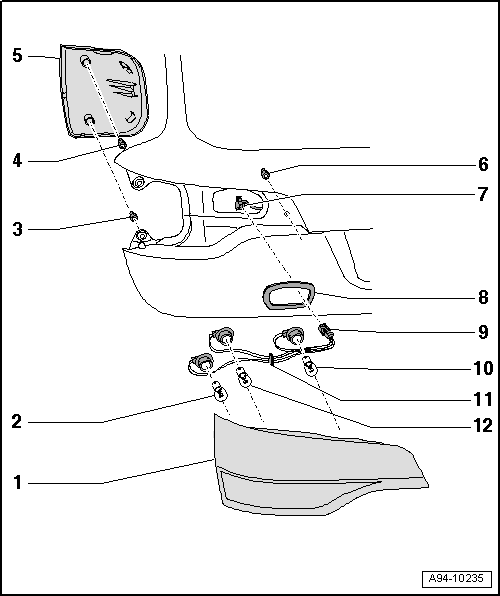

Fig 1: Identifying Tail Lamps Overview

Courtesy of AUDI OF AMERICA, LLC

Tail Lamp
- Removing and Installing, refer to TAIL LAMP, REMOVING AND INSTALLING .
Light Bulb
- For turn signal light.
- 12V, 21 W
- Replacing, refer to OUTER BULB HOLDER, REMOVING AND INSTALLING .
Cap Nut
- 3.5 Nm
Cap Nut
- 3.5 Nm
Cap
- Removing and Installing, refer to TAIL LAMP, REMOVING AND INSTALLING .
Cap Nut
- 3.5 Nm
Connector
Gasket
- Self-adhesive
- Replace if damaged.
Central Connector
- For lamp sockets.
Light Bulb
- For tail light/brake light.
- 12V, 21 W
- Replacing, refer to INNER BULB HOLDER, REMOVING AND INSTALLING .
Wiring Bushing
Light Bulb
- For tail light/brake light.
- 12V, 21 W
- Replacing, refer to OUTER BULB HOLDER, REMOVING AND INSTALLING .
