Front Passenger Seat Overview

-- Position screws -3- in sequence -A-, -B-, -C- and -D- and tighten to the specification in same sequence.

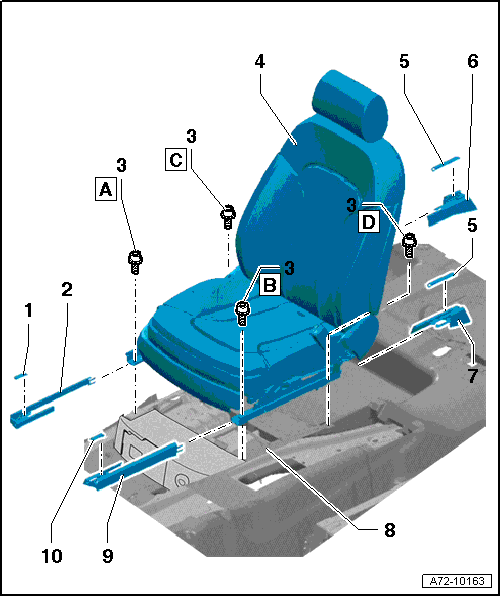

Fig 1: Identifying Passenger Seat Assembly Overview

Courtesy of AUDI OF AMERICA, LLC

1. Front Spindle Cover
   • Clipped in
   • Removing and Installing. Refer to SEAT RAIL COVERS, REMOVING AND INSTALLING .
2. Seat Rail Cover Cap
   • Removing and Installing. Refer to SEAT RAIL COVERS, REMOVING AND INSTALLING .
3. Screw, Self-Locking
   • 45 Nm
   • Always replace if removed.
   • Clean nut threads before installing new screws.
   • Observe installation sequence.
4. Front Passenger Seat
   • Removing and Installing. Refer to FRONT SEAT, REMOVING AND INSTALLING .
   • Removing the front seat in the case of a faulty control module or seat forward/back adjustment motor. Refer to FRONT SEAT IN THE CASE OF A FAULTY CONTROL MODULE OR SEAT FORWARD/BACK ADJUSTMENT MOTOR, REMOVING .
5. Spindle Rear Cover
   • Connected
   • Removing and Installing. Refer to SEAT RAIL COVERS, REMOVING AND INSTALLING .
6. Seat Rail Cover Cap
   • Removing and Installing. Refer to SEAT RAIL COVERS, REMOVING AND INSTALLING .
7. Seat Rail Cover Cap
   • Removing and Installing. Refer to SEAT RAIL COVERS, REMOVING AND INSTALLING .
8. Passenger Seat Console with Drawer
9. Seat Rail Cover Cap
   • Removing and Installing. Refer to SEAT RAIL COVERS, REMOVING AND INSTALLING .
10. Front Spindle Cover
    • Clipped in
    • Removing and Installing. Refer to SEAT RAIL COVERS, REMOVING AND INSTALLING .
