Air Duct In Rear Heating & A/C Unit

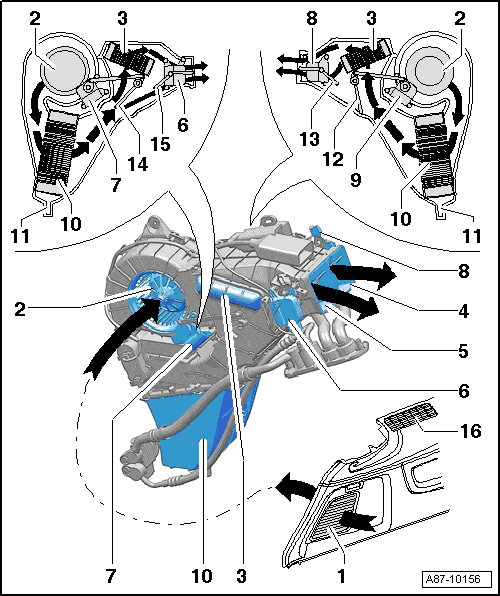

Fig 1: Identifying Air Duct In Rear Heating & A/C Unit
GWWA87-10156Courtesy of AUDI OF AMERICA, LLC
  1. Air Intake Grill In Left Side Luggage Compartment Side Trim
    • Air intake must not be obstructed by any objects.
    • Removing and installing left side luggage compartment side trim, refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL OVERVIEW .
    • Versions of left side luggage compartment side trim vary, no air intake grille is installed on vehicles without rear heating & A/C unit.
  2. Rear Fresh Air Blower -V80-
  3. Heater Core
  4. Air Outlet To Left Side In Air Channel On Rear Heating & A/C Unit
  5. Air Outlet To Right Side In Air Channel On Rear Heating & A/C Unit
  6. Right Rear Air Door Motor -V240-
  7. Right Rear Temperature Door Motor -V314-
  8. Left Rear Temperature Door Motor -V313-
  9. Left Rear Air Door Motor -V239-
  10. Evaporator Housing With Evaporator
  11. Condensation Drain
  12. Left rear temperature door
    • Shown in Heat position
  13. Left Rear Air Door
    • Shown in Open position
  14. Right Rear Temperature Door
    • Shown in center position
  15. Right Rear Air Door
    • Shown in Open position
  16. Air Outlet Grille For Forced Air Extraction Vents
    • Air outlet must not be obstructed by any objects.
