Special Tools

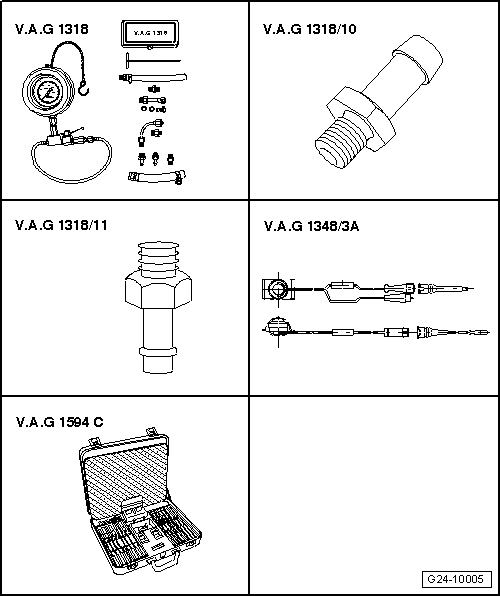

Fig 1: Identifying Special Tools -- Fuel Pressure And Residual Pressure Before High Pressure Pump, Checking

Courtesy of AUDI OF AMERICA, LLC

Special tools and workshop equipment required

• Fuel Inj. Pressure Gauge-CIS VAG 1318
• Adapter VAG 1318/10
• Adapter VAG 1318/11
• Remote Control VAG 1348/3A with Remote Control for VAG1348 VAG 1348/3-3
• Connector Test Set VAG 1594C
• Measuring container, fuel-resistant

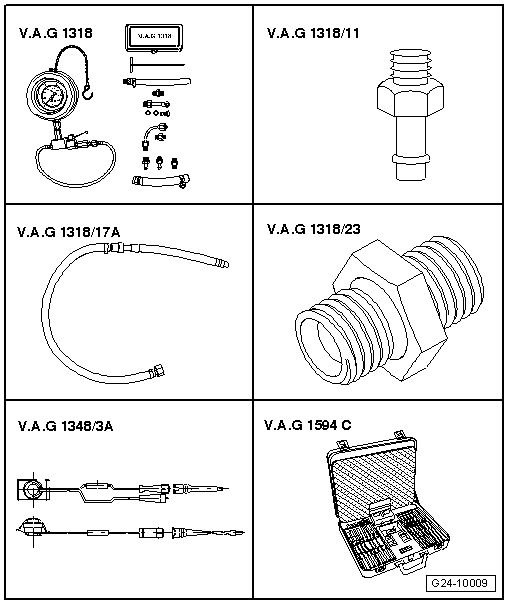

Fig 2: Identifying Special Tools -- Fuel Pump Delivery Rate, Checking

Courtesy of AUDI OF AMERICA, LLC

Special tools and workshop equipment required

• Fuel Inj. Pressure Gauge-CIS VAG 1318
• Adapter VAG 1318/11
• Adapter VAG 1318/17A
• Fuel Line Feed Adapter VAG 1318/23
• Remote Control VAG 1348/3A with Remote Control for VAG1348 VAG 1348/3-3
• Connector Test Set VAG 1594C

Special tools and workshop equipment required

• Support T10031
  Fig 3: Support T10031

  Courtesy of AUDI OF AMERICA, LLC
• Fuel Tank - Locking Ring Wrench T10202
  Fig 4: Fuel Tank - Locking Ring Wrench T10202

  Courtesy of AUDI OF AMERICA, LLC
• Adapters VAG 1318/10-12
  Fig 5: Pressure Gauge Adapter VAG 1318/10-12

  Courtesy of AUDI OF AMERICA, LLC
• Engine - Transmission Jack VAG 1383 A
  Fig 6: Engine & Transmission Jack VAG 1383 A

  Courtesy of AUDI OF AMERICA, LLC
• Multimeter VAG 1526D
  Fig 7: Multi-Meter VAG 1526 D

  Courtesy of AUDI OF AMERICA, LLC
• Fuel Extracting Device VAS 5190
  Fig 8: Fuel Extracting Device VAS 5190

  Courtesy of AUDI OF AMERICA, LLC
• Tools not illustrated:
• Hose Clamps Up to 25 mm Diameter 3094
