Leak Detection Pump -V144-: Removing

WARNING: This page is about a different variant/trim than selected.

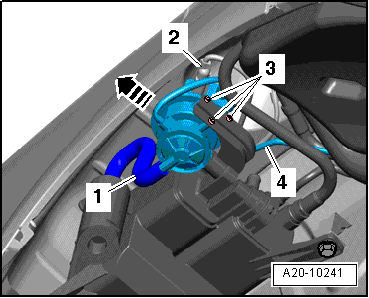

Fig 1: Identifying Removal Of Leak Detection Pump (LDP) -V144-

Courtesy of AUDI OF AMERICA, LLC

-- On a vehicle with air suspension, activate vehicle lift mode. Refer to VEHICLE LIFT MODE .

-- Remove right rear wheel.

-- Remove the right rear wheel housing liner. Refer to REAR WHEEL HOUSING LINERS, REMOVING AND INSTALLING .

-- Separate the electrical connector -2- with ignition turned off.

-- Disconnect connecting hose -1-.

-- Remove bolts -3- and remove diagnostic pump from Evaporative Emission (EVAP) canister in direction of -arrow-.

-- Remove the vacuum line -4- from Leak Detection Pump -V144-.
